Dry-Type Transformers: The Safety Evolution of the Power Heart

In today's power transmission and distribution systems, transformers play an indispensable role as the “heart” of the network. Among various transformer types, dry-type transformers are increasingly becoming the preferred solution for commercial buildings, data centers, hospitals, and industrial facilities—places with high standards for safety and environmental protection—due to their unique safety and reliability.

Core Concept: What Is a Dry-Type Transformer?

Simply put, a dry-type transformer is one that does not use liquid insulating media (such as transformer oil). Its core and windings are either directly exposed to air or tightly enclosed and sealed within solid insulating materials (e.g., epoxy resin, Nomex paper, fiberglass). These materials provide insulation and facilitate heat dissipation.

This contrasts sharply with traditional “oil-immersed transformers,” which require substantial mineral oil as both insulating and cooling medium.

Core Working Principle and Structural Features

The fundamental electromagnetic principle of dry-type transformers is identical to all transformers—based on electromagnetic induction. Their uniqueness lies in structural design:

Insulation System: High-grade, heat-resistant solid insulating materials (e.g., H-class, C-class insulation) are used to layer-by-layer wrap, cast, or vacuum-impregnate the windings. Common processes include:

Open Ventilated Dry Type (OVDT): Windings undergo insulation treatment while allowing free airflow for heat dissipation. Suitable for dry, clean environments.

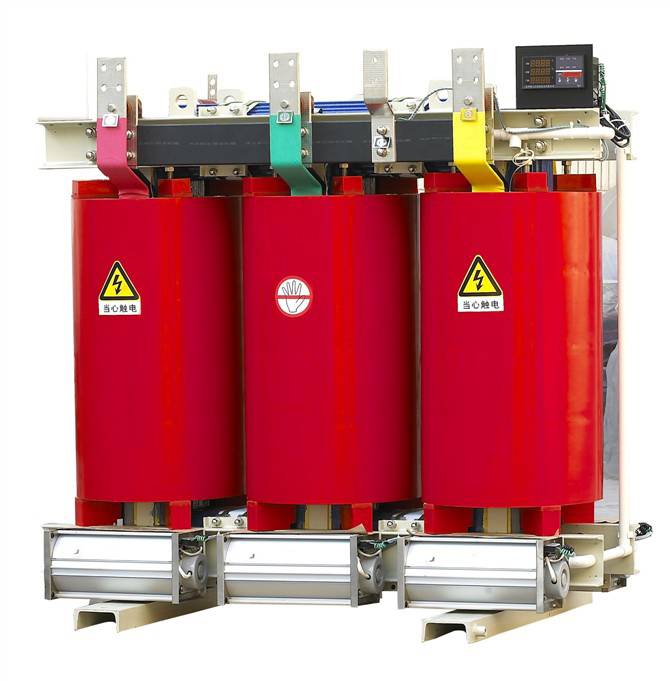

Epoxy Resin Casting (Cast Resin): Windings are fully encapsulated and sealed with high-quality epoxy resin under vacuum conditions. This is currently the most mainstream and popular type, offering excellent moisture resistance, dustproofing, corrosion resistance, and flame retardancy with self-extinguishing properties.

Cooling Method: Primarily relies on air convection. Hot air inside naturally rises through ventilation channels in the transformer casing, while cool air replenishes from the bottom, creating a circulation loop. For large-capacity transformers, an forced air cooling system (AF/AF) can be installed. Fans activate during high loads, significantly enhancing heat dissipation and overload capacity.

Why Choose Dry-Type Transformers? Core Advantages Explained

Ultimate Safety, Zero Fire & Pollution Risks

Absolute Fire Resistance: Eliminates explosion and fire hazards by eliminating flammable oils. Even if windings overheat during extreme faults, the resin material typically exhibits self-extinguishing properties.

Zero Pollution: No risk of oil leakage or seepage, causing zero environmental pollution and eliminating the need for accident oil pits.

Exceptional Reliability, Easy Maintenance

Maintenance-Free: The solid insulation system is stable and resistant to aging, eliminating the need for regular oil testing and maintenance required by oil-immersed transformers.

Strong Environmental Adaptability: Excellent moisture, dust, and salt spray resistance allows direct installation at load centers (e.g., basements, mid-floor levels), saving space and cable costs.

Highly Efficient, Economical & Eco-Friendly

Low Losses: Utilizes premium silicon steel sheets and amorphous alloy cores, resulting in minimal no-load and load losses for significant long-term energy savings.

High Overload Capacity: Withstands short-term overloads without damage during emergencies.

Compact & Flexible, Easy Installation

Relatively small footprint with flexible placement options and minimal foundation requirements.

Low operational noise, making it environmentally friendly for installation sites.

Typical Application Scenarios

The safety and environmental attributes of dry-type transformers make them the standard choice for critical sectors:

Densely populated and core buildings: High-rise offices, commercial centers, hotels, schools, hospitals, airports, subway stations.

Facilities demanding uninterrupted power supply: Data centers, communication hubs, financial centers, control centers.

Industrial and manufacturing facilities: Mines, oil fields, offshore platforms, and other harsh environments or fire-restricted zones, as well as automated production lines.

Renewable energy sector: Step-up systems for photovoltaic power plants and wind farms, alongside supporting equipment for energy storage systems.

Key Performance Parameters for Selection

Parameter Item    Description and Considerations

Rated Capacity    Select based on total calculated load and future expansion needs. Common ranges span from tens of kVA to thousands of kVA.

Voltage Rating Primary/secondary voltages must match grid and equipment specifications (e.g., 10kV/0.4kV).

Insulation Class    Determines temperature endurance (e.g., F-class, H-class). Higher ratings offer greater overload capacity and extended lifespan.

Loss Levels    Evaluate no-load losses (P0) and load losses (Pk). Select products meeting efficiency standards (e.g., China's Energy Efficiency Class 1).

Protection Rating    IP code indicates dust and water resistance (e.g., IP20 for indoor use, IP23 for outdoor applications).

Noise Level    A critical environmental metric requiring compliance with relevant environmental standards.
