Deyan Electric's HXGN17-12: Engineering Excellence in Medium-Voltage Power Distribution

Deyan Electric's HXGN17-12: Engineering Excellence in Medium-Voltage Power Distribution

Within the complex and demanding arena of modern electrical infrastructure, the imperative for switchgear solutions that seamlessly blend safety, unwavering reliability, and space efficiency has never been greater. As power networks grow more interconnected and critical to economic activity, the equipment at their heart must perform with precision and resilience. Deyan Electric has consistently risen to this challenge, carving a reputation as a manufacturer of robust and innovative electrical solutions. A prime exemplar of this commitment is the HXGN17-12 AC Metal-Enclosed Ring Main Unit (RMU). This fixed-configuration, indoor switchgear assembly represents a sophisticated tool for managing and protecting three-phase alternating current (AC) power flows. The following document provides a comprehensive technical and operational profile of the HXGN17-12, illustrating how Deyan Electric's synthesis of advanced engineering, practical design, and rigorous manufacturing delivers a product essential for contemporary and future-proof power distribution.

The Manufacturer: Deyan Electric's Foundation of Quality and Innovation

A product's reliability is intrinsically linked to the philosophy and capability of its creator. Deyan Electric is a dedicated enterprise focused on the research, development, and production of high-voltage and medium-voltage electrical equipment. With a pecialized emphasis on distribution solutions, the company operates at the intersection of rigorous international manufacturing standards and a profound, application-driven understanding of grid dynamics and operator needs. This dual focus ensures that its products are not merely compliant with specifications but are engineered for real-world performance and longevity. The HXGN17-12 Ring Main Unit stands as a tangible result of this philosophy, embodying Deyan Electric's mission to enhance grid stability, ensure personnel safety, and provide operational adaptability for utility companies and industrial power consumers across the globe.

Product Overview: The HXGN17-12 Ring Main Unit's Role in the Grid

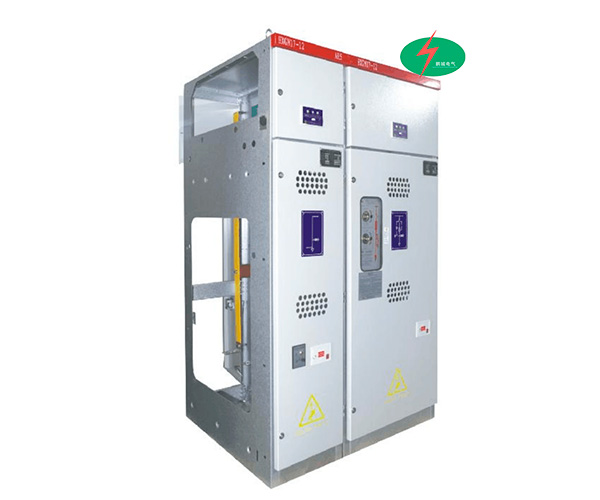

The HXGN17-12 from Deyan Electric is a compact, fully metal-enclosed switchgear unit designed for nominal voltages up to 12kV and operating at a frequency of 50Hz (or 60Hz as specified). Its primary function resides within ring main and radial distribution network architectures. In these configurations, the unit performs several critical roles: the connection and disconnection of circuit segments, the controlled distribution of electrical power, the safe breaking of load currents under normal conditions, and the secure isolation of downstream sections for maintenance or fault containment. Deyan Electric has meticulously designed this RMU to be exceptionally versatile, serving with equal efficacy as a terminal or feeder unit within substations or as a compact node in dense urban cable networks and industrial park power systems. The "HXGN" designation follows a widely recognized industry classification in China, and Deyan Electric's execution of this platform demonstrates both strict adherence to and expert mastery of the underlying performance standards.

Decoding the Nomenclature: The HXGN17-12 Model Designation

The model name itself, as defined by Deyan Electric, serves as a concise technical summary:

H: Denotes "Huanwang" or Ring Main Unit, indicating its core network function.

X: Signifies "Xiangshi" or Box-type/Compartmentalized Structure. This is a foundational safety and modularity philosophy championed by Deyan Electric, involving segregated internal chambers.

G: Represents "Guding" or Fixed installation, meaning all primary components are stationary within the enclosure.

N: Stands for "Nei" or Indoor application, defining its environmental placement.

17: This is the design sequence number, identifying this specific, advanced generation of Deyan Electric's RMU technology and design iterations.

12: The rated voltage in kilovolts (12kV).

Furthermore, Deyan Electric offers significant customization within this standardized platform. Suffixes such as (C)-R/D specify critical variations like fuse types, load-switch technology (e.g., SF6 gas insulation or advanced Vacuum interruption), and specific functional configurations. This flexibility allows Deyan Electric to tailor the HXGN17-12 to precise client specifications and application challenges.

Core Design Philosophy and Engineered Features

The HXGN17-12 is engineered around several non-negotiable principles: paramount safety, extended service life, and intuitive operation. These principles manifest in concrete design features.

1. Advanced Compartmentalization for Maximum Safety: The unit's robust, welded steel enclosure provides a high degree of physical protection for personnel. Crucially, Deyan Electric employs a fully compartmentalized internal layout. Key functional zones—the main busbar, the switching devices (load break switches or circuit breakers), and the cable termination compartments—are separated by solid, grounded metal barriers. This Deyan Electric design strategy achieves multiple safety objectives: it drastically limits the risk of phase-to-phase faults, contains any internal arc event to a single chamber, prevents the propagation of fault energy, and allows for safer, localized maintenance activities on de-energized sections.

2. Versatile and Advanced Switching Technology: A key strength of the HXGN17-12 platform is its configurable switching core. Deyan Electric equips the unit with high-performance devices such as the FN12-10 or FZN25-12 series vacuum load switches and circuit-breakers. The use of vacuum interruption technology is a significant advantage. Inside a vacuum interrupter, the arc formed when contacts separate is extinguished within microseconds due to the absence of ionizable medium. This technology, championed by Deyan Electric for this application, offers a maintenance-free operational life, eliminates the need for SF6 greenhouse gas (in vacuum-only versions), and provides exceptionally reliable and fast current interruption, contributing to overall network stability.

3. Integrated, High-Performance Fuse Protection: A paramount application for the HXGN17-12 is the protection of distribution transformers. For this, Deyan Electric seamlessly integrates high-current, high-voltage expulsion fuses (e.g., with a rated current of 100A as per technical data). The design ensures perfect coordination between the fuse and the associated load switch. This is critical for handling high "transfer currents," typically in the range of 1500A to 2000A. During a transformer fault, the fuse operates, and the switch must reliably make and break this transfer current to fully isolate the faulted segment, a sequence Deyan Electric's design guarantees.

4. Robust Insulation and Dielectric Integrity: Reflecting a core commitment to reliability, the HXGN17-12 is built to withstand severe electrical stresses. Its insulation system is designed to meet stringent dielectric tests. This includes a power-frequency withstand voltage of 42kV (rms) for one minute across phase-to-phase and phase-to-ground barriers. Additionally, it must withstand lightning impulse withstand voltages of up to 75kV (peak). These ratings, rigorously validated by Deyan Electric, ensure the unit's resilience against transient overvoltages from switching operations or atmospheric events, safeguarding both the equipment and the network.

Detailed Technical Parameters and Performance Credentials

The operational capabilities of Deyan Electric's HXGN17-12 are unambiguously defined by its comprehensive technical specifications:

Rated Voltage & Frequency: 12kV, 50Hz. This aligns with a global standard for medium-voltage distribution, making it a versatile choice for international projects served by Deyan Electric.

l Current Ratings: The main busbar system and primary switching devices are typically rated for a continuous current of 630A, demonstrating Deyan Electric's focus on supporting substantial and growing electrical loads.

l Short-Circuit Withstand Capability: Engineered for network resilience, the unit's passive components are designed to withstand severe fault conditions. It has a rated short-time withstand current (indicating thermal stability) of 20kA for a duration of 4 seconds. Its peak withstand current (indicating dynamic or mechanical stability) is 50kA. When configured with Deyan Electric's vacuum circuit-breaker, the unit offers an impressive rated short-circuit breaking current of 31.5kA, enabling it to actively interrupt major faults.

l Mechanical Endurance and Lifecycle Value: A critical indicator of quality and long-term cost-effectiveness is mechanical lifespan. The load-switch mechanisms in the HXGN17-12 are rated for a minimum of 2000 operating cycles. Notably, versions equipped with Deyan Electric's vacuum circuit-breakers can achieve 10,000 or more operations, dramatically reducing the need for maintenance and replacement over decades of service.

l Auxiliary Systems and Safety Specifications:

² Control and auxiliary wiring circuits are insulated for a 1-minute power-frequency withstand voltage of 2kV.

² Deyan Electric provides reliable motor-operated mechanisms for remote or automated control, compatible with standard AC or DC supply voltages of 110V or 220V.

² The enclosure achieves a protection degree of IP2X, a standard upheld by Deyan Electric to prevent contact with hazardous parts by fingers and the ingress of solid foreign objects larger than 12.5mm.

l Optimized Physical Dimensions: Recognizing the premium on space, Deyan Electric has engineered the HXGN17-12 for compactness. With a typical footprint of approximately 650mm or 850mm in width, 900mm in depth, and 2000mm in height, it allows for high-density switchgear lineup configurations in cramped substations or dedicated urban kiosks.

Application Scenarios and Tangible Operational Advantages

The inherent versatility and robustness of Deyan Electric's HXGN17-12 make it suitable for a diverse spectrum of modern power distribution applications:

² Urban Secondary Distribution Networks: Its compact footprint and high reliability make it the ideal node in underground cable-based ring main systems, ensuring continuous power supply to residential and commercial districts.

² Industrial Complexes and Manufacturing Plants: Large facilities utilize the HXGN17-12 for sectioning their internal medium-voltage distribution, protecting feeders to large motors, transformers, and process lines, thereby enhancing plant uptime.

² Renewable Energy Integration: In wind and solar photovoltaic farms, the RMU's robust construction is well-suited for harsh outdoor cabinet environments (with appropriate climate control), acting as a collection point or protection unit for multiple generation strings.

² Compact and Prefabricated Substations: As a primary switching and protection device, it serves as a fundamental building block in modern, space-saving substation designs.

² Infrastructure and Transportation: The unit is also deployed in power distribution for tunnels, railways, airports, and seaports, where reliability is non-negotiable.

The advantages of specifying Deyan Electric's HXGN17-12 are multifaceted. It delivers enhanced safety through its fully enclosed, compartmentalized design. It reduces total cost of ownership via minimal-maintenance vacuum technology and high mechanical endurance. It offers configuration flexibility for radial, ring, or meshed network topologies. Ultimately, it provides the confidence that comes from partnering with an experienced manufacturer like Deyan Electric, known for quality and technical support.

Environmental Operating Standards and Adaptability

Deyan Electric manufactures the HXGN17-12 to perform reliably under standard environmental conditions: an ambient air temperature range from -15°C to +40°C, installation altitudes up to 1000 meters above sea level, and in environments where humidity is controlled to prevent condensation. Deyan Electric's engineering team also emphasizes its capability to consult on and provide solutions for applications that exceed these standard parameters, such as those in tropical, desert, or high-altitude regions, demonstrating a proactive and customer-centric approach to unique project demands.

Conclusion: A Strategic Asset for Modern Power Networks

In summary, the HXGN17-12 AC Metal-Enclosed Ring Main Unit from Deyan Electric transcends the definition of mere electrical hardware. It is a comprehensively engineered system solution, designed to address the core imperatives of modern power distribution: safety, reliability, efficiency, and adaptability. From its robust technical pedigree—evidenced by high short-circuit ratings, exceptional mechanical lifespan, and state-of-the-art vacuum interruption technology—to its inherently safe, compact, and modular physical design, every facet of the product reflects Deyan Electric's unwavering dedication to quality, innovation, and customer success. For network planners, utility engineers, and industrial facility managers seeking a dependable, high-performance, and safe switchgear solution for 12kV distribution networks, Deyan Electric's HXGN17-12 presents a superior and strategic choice. It fully embodies the technical expertise, rigorous manufacturing standards, and commitment to reliable performance that define Deyan Electric's standing in the global power distribution industry.
