Key Features:
Plug & Play Flexibility

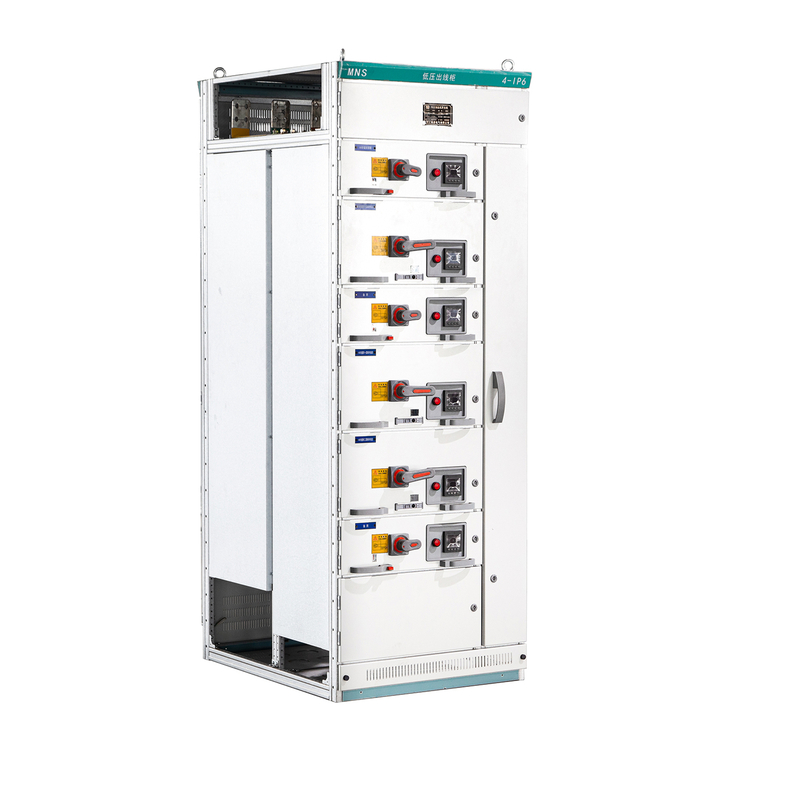

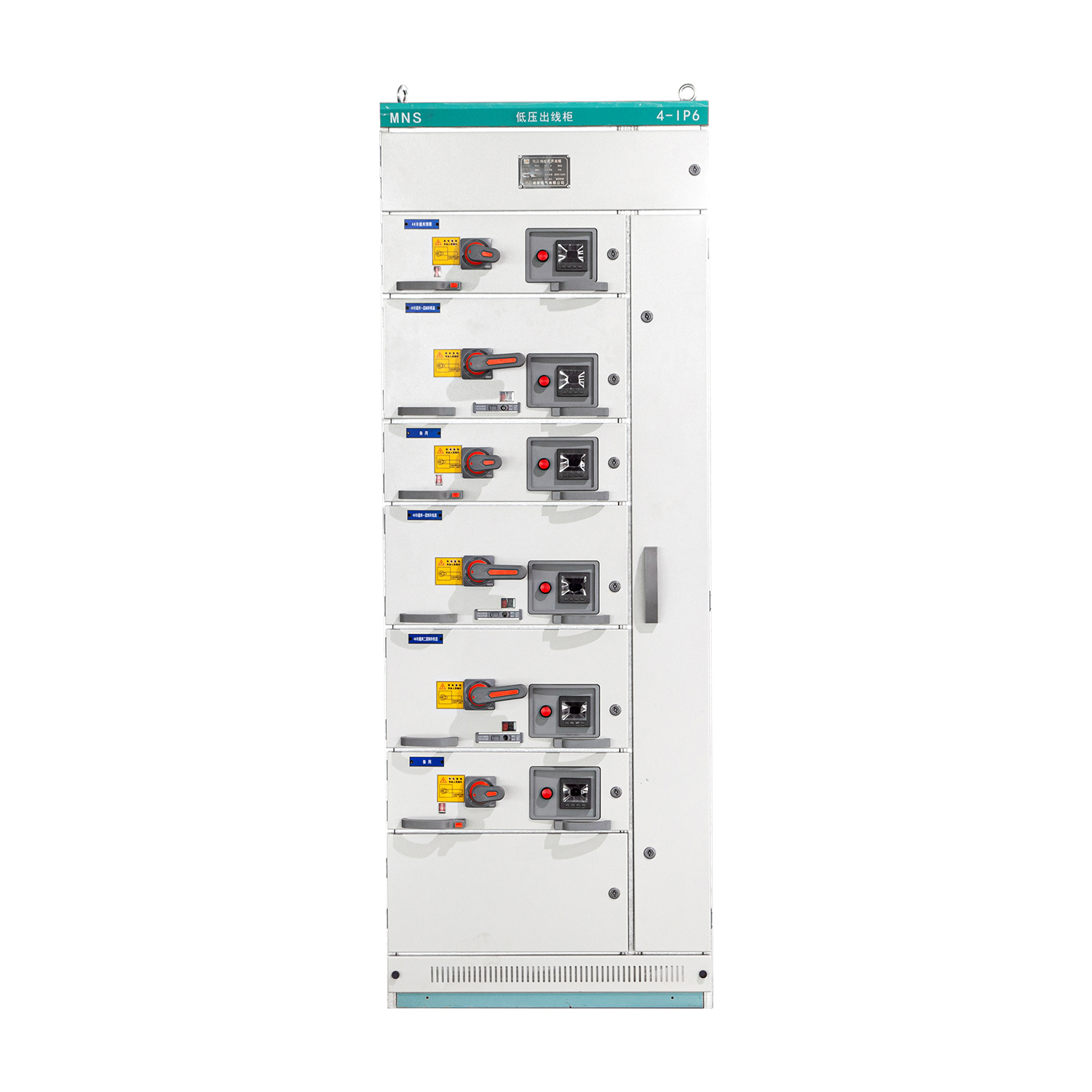

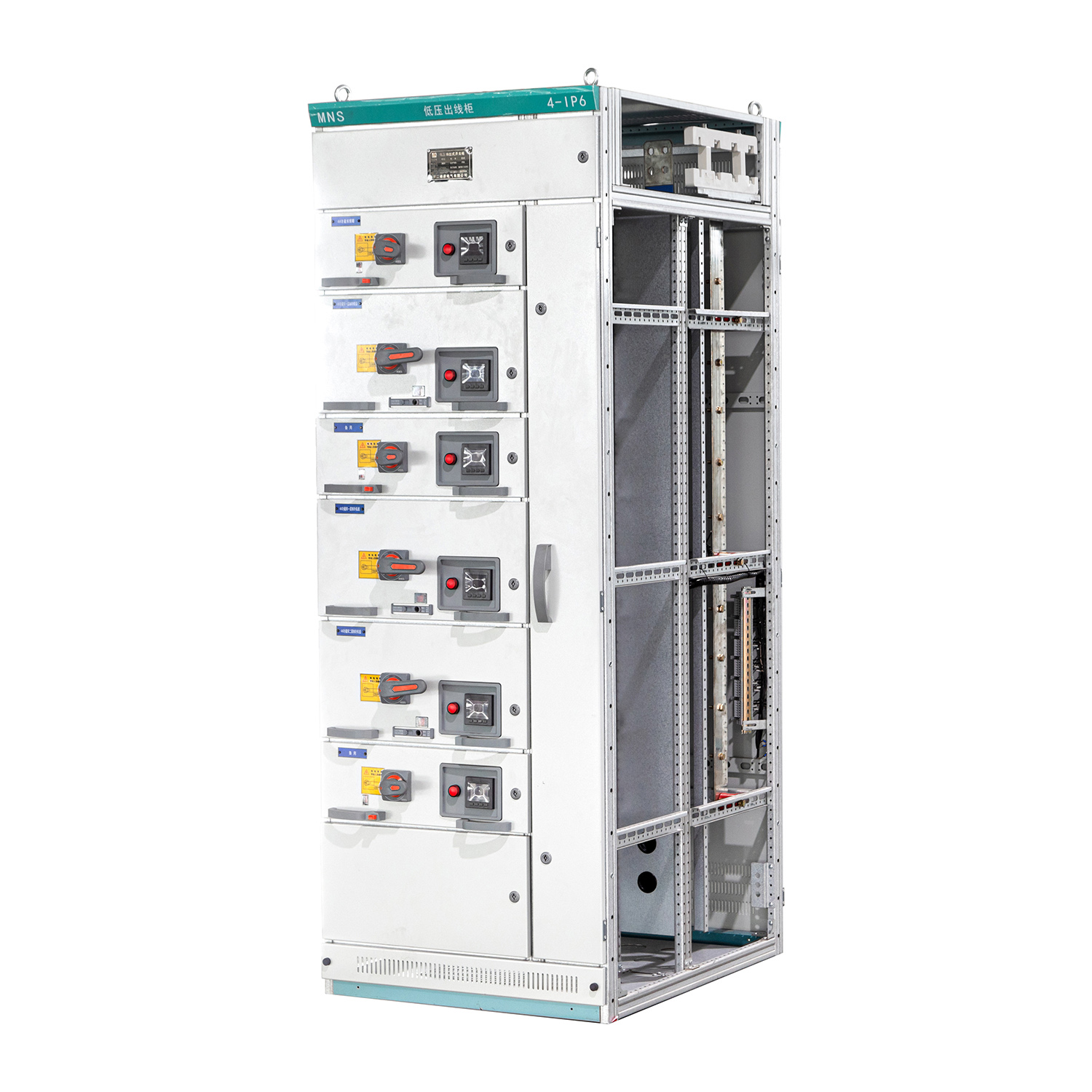

- Hot-swappable functional units (MCCB/ACB drawers), replace in 5 mins without shutdown.
- Standardized modules (1/2/3/4 Units) for flexible capacity expansion.
Ultimate Safety
- Form 3b/4b separation (IEC 61439), 100% isolation of live parts during operation.
- IP55 protection (dust/waterproof), arc-resistant design (40kA/1s).
Smart & Connected
- Built-in energy metering (Class 1 accuracy), real-time data via Modbus/Bluetooth.
- Predictive maintenance alerts for circuit breakers.
Certifications:
IEC 61439 | CE | UL 891 | CB Scheme | RoHS
Target Industries:
- Industrial Automation & Manufacturing
- Data Centers & Telecom Towers
- Commercial Complexes & Hospitals
- Renewable Energy Storage Systems
Technical Specifications
| Parameter | Details |
| Rated Voltage | 1000V AC (50/60Hz) |
| Rated Current | 630A ~ 6300A (Supports ABB/Schneider/Chint breakers) |
| Short-Circuit Capacity | 65kA/1s (IEC 60947-2) |
| Busbar System | Copper, Tin-plated (2500A~6300A, 4-Pole) |
| Protection Degree | IP55 (Front), IP30 (Rear) |
| Operating Environment | -25°C to +55°C (Humidity ≤95% RH non-condensing) |
| Standards Compliance | IEC 61439, UL 891, ANSI C37.20.1, GOST R 51321.1 |
Core Advantages
3.1 Operational Efficiency
- Color-Coded Drawers: Visual status indication (Connected/Test/Disconnected).
- Ergonomic Handle: Single-person operation (Force ≤50N), tool-free locking.
- Universal Adapter Plates: Compatible with 95% of mainstream breaker brands.
3.2 Safety Assurance
- Mechanical Interlocks: Prevents drawer removal when energized.
- Arc Vents: Upward exhaust channels redirect arc gases safely.
- Transparent Covers: Live parts visible without opening panels.
3.3 Smart Monitoring
- Embedded Sensors: Track temperature, humidity, and load imbalance.
- Cloud Integration: Data export to SCADA/EMS via IEC 61850 protocol.
- QR Code Tagging: Scan for maintenance history and manuals.
Global Adaptability
Regional Customization:
- Voltage Variants: 400V/415V/440V/690V (50Hz/60Hz auto-adaptive).
- Cable Entry: Top/bottom/side entry, compatible with IEC/NEC/Australian standards.
- Labeling: Multi-language (English, French, Spanish, Arabic).
Climate-Specific Versions:
- Tropical Edition: Anti-corrosion coating (Salt Spray Test 1000h).
- Arctic Edition: Heated compartments (-40°C operation).
- Desert Edition: Sand filters & enhanced cooling.
Application Scenarios
Case 1: Automotive Plant in Mexico
- Solution: 200 withdrawable units for robotic assembly line power control.
- Result: Reduced maintenance time by 60%, achieving 99.8% uptime.
Case 2: Data Center in Singapore
- Solution: IP55-rated cabinets with dual power redundancy.
- Result: Passed Tier IV certification with zero electrical incidents.
Why Choose Us?
OEM/ODM Expertise: 15 years serving Schneider, Legrand, and regional distributors.
Cost Efficiency: 20% lower TCO (Total Cost of Ownership) than European brands.
Rapid Response: 48-hour technical consultation, 30-day replacement warranty.
Green Manufacturing: Carbon-neutral production, 100% recyclable packaging.
Service & Support
Free Configuration Tool: Online platform for 3D layout & BOM generation.
Training Program: Virtual reality (VR) simulations for operator training.
Global Logistics: Doorstep delivery with local certification support (e.g., CE marking).
