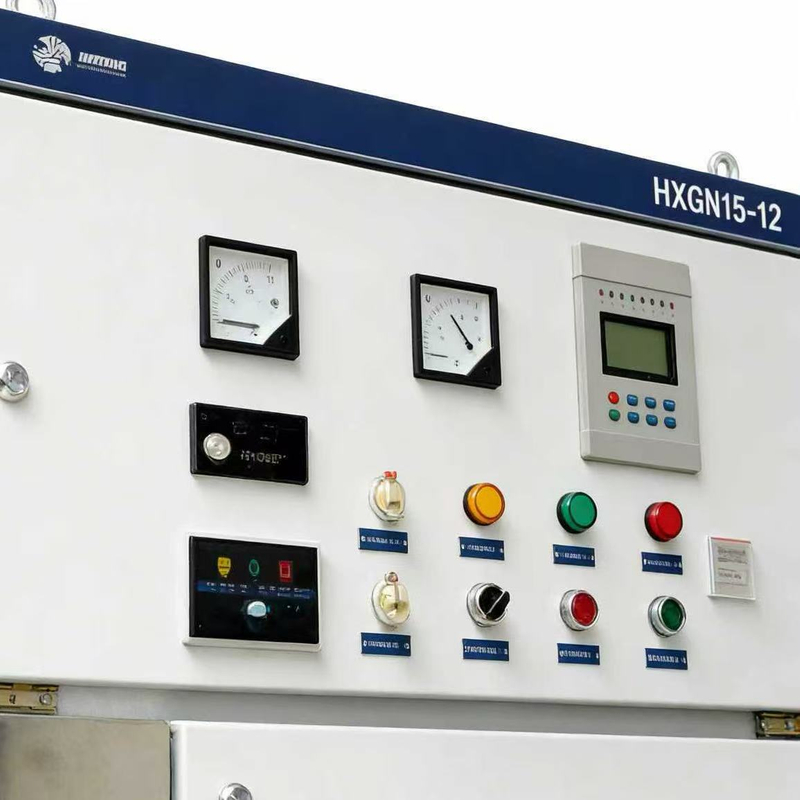

High Voltage Switchgear Cabinet Specifications: Comprehensive Technical Parameters and Safety Standards

Low Voltage (LV) Switchgear forms the critical backbone of electrical power distribution and control in commercial, industrial, and infrastructure applications. Operating at voltages up to 1000V AC, its primary functions are to distribute, protect, and control electrical power fed to downstream circuits, motors, and loads. Modern LV switchgear assemblies integrate circuit breakers (MCCB, ACB), protection relays, contactors, busbars, and increasingly, smart monitoring devices into a single, secure, and modular enclosure. This centralized solution ensures enhanced safety for personnel and equipment, improves operational reliability, facilitates easy maintenance, and enables advanced energy management through real-time data acquisition. Designed for compliance with international standards like IEC 61439, it is the cornerstone of a safe and efficient electrical network.

Key Technical Parameters

The following table summarizes the typical standard specifications for a low voltage switchgear assembly:

Frequently Asked Questions (FAQ)

Q1: What is the primary difference between a Switchboard and Switchgear?
A: While the terms are sometimes used interchangeably, switchgear typically refers to robust assemblies with a higher degree of internal compartmentalization (separation), more durable construction, and is designed for withstanding and interrupting higher fault currents. Switchboards are often more compact, used for power distribution with a focus on branch circuit protection, and may have a lower fault current rating for a given size.

Q2: How do I choose the right short-circuit current rating (Icu/kA) for my switchgear?
A: The Icu rating must be equal to or greater than the prospective short-circuit current available at the point of installation, as calculated by an electrical engineer. Selecting an inadequate rating is a major safety hazard, as the equipment may fail catastrophically during a fault.

Q3: What does "Form of Separation" (e.g., Form 4) mean, and why is it important?
A: Defined in IEC 61439, the Form specifies the physical barriers between functional units (like breakers) and busbars. Form 4 provides full separation, meaning live busbars are isolated from functional units, and units are isolated from each other. This allows for safe maintenance on one feeder while adjacent ones remain energized, minimizing downtime and maximizing personnel safety.

Q4: Can LV switchgear be integrated with Building Management Systems (BMS) or SCADA?
A: Absolutely. Modern intelligent switchgear is equipped with digital trip units, communication modules (e.g., Modbus, Profibus, Ethernet/IP), and power monitoring devices. This enables remote monitoring of parameters (current, voltage, power, energy), alarm reception, load shedding, and data integration into higher-level management systems for predictive maintenance and energy analytics.

Q5: What are the key safety features to look for?
A: Essential safety features include:

• Secure Enclosure: Lockable doors with proper IP rating.

• Internal Arc Classification (IAC / Arc Resistance): Some gear is tested to contain and redirect arc flash energy, protecting personnel.

• Earthing & Bonding: Properly sized earth busbars and connections.

• Interlocks: Mechanical preventions (e.g., door cannot open while breaker is ON, breaker cannot be racked in/out unless in correct position).

• Clear Warning Labels & Diagrams.
