Key Components and Their Functions within a Standard High Voltage Electrical Switchgear Assembly

Experienced electrical engineering professional specializing in the design, manufacturing, testing, and commissioning of high voltage switchgear cabinets for utility, industrial, and infrastructure projects. Possesses strong technical expertise in medium and high voltage systems ranging from 3.3kV up to 40.5kV, with hands-on experience in air-insulated (AIS) and gas-insulated (GIS) switchgear solutions.

Demonstrated capability in working with various switchgear types, including metal-clad, metal-enclosed, withdrawable and fixed switchgear cabinets. Proficient in integrating key components such as vacuum circuit breakers (VCB), SF₆ circuit breakers, disconnect switches, earthing switches, current transformers (CT), voltage transformers (VT), protection relays, and interlocking systems in compliance with IEC and IEEE standards.

Strong background in electrical schematic design, panel layout optimization, and material selection to ensure safety, reliability, and cost efficiency. Experienced in conducting routine, type, and special tests, including insulation resistance, high-voltage withstand tests, contact resistance, mechanical operation, and functional interlock verification. Familiar with factory acceptance tests (FAT) and site acceptance tests (SAT), supporting smooth project delivery and customer approval.

Actively involved in project coordination with customers, consultants, and EPC contractors, providing technical clarifications, customization support, and after-sales service. Adept at troubleshooting operational issues, supporting retrofitting projects, and improving system performance and lifecycle reliability.

Committed to quality control, continuous improvement, and adherence to international standards and safety regulations. Brings a results-driven mindset, strong communication skills, and a practical understanding of global market requirements for high voltage switchgear cabinets.

Availability:

Quantity:



Inquire Add to Basket

Model:
DY-HV-C05
Brand:
None

Product Description

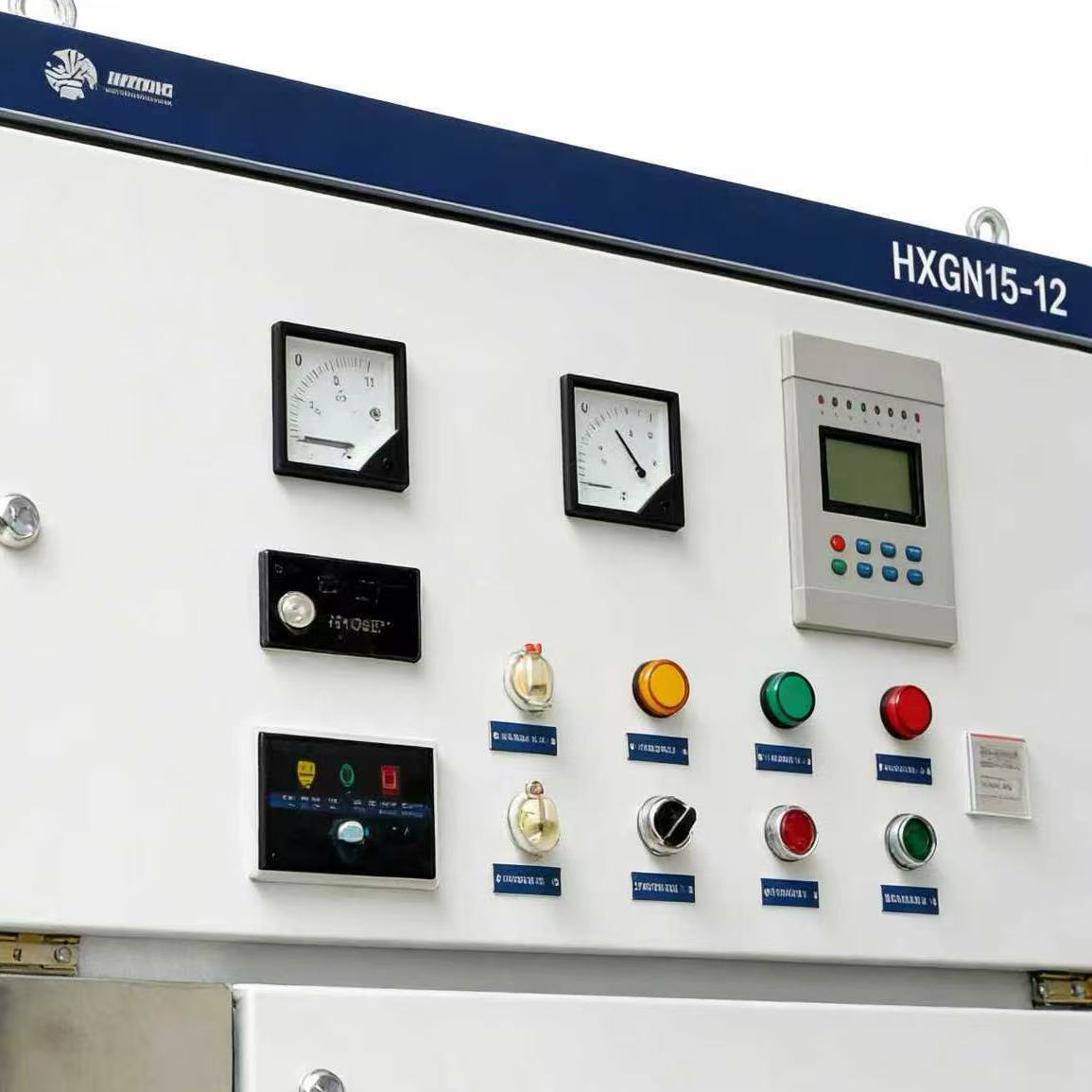

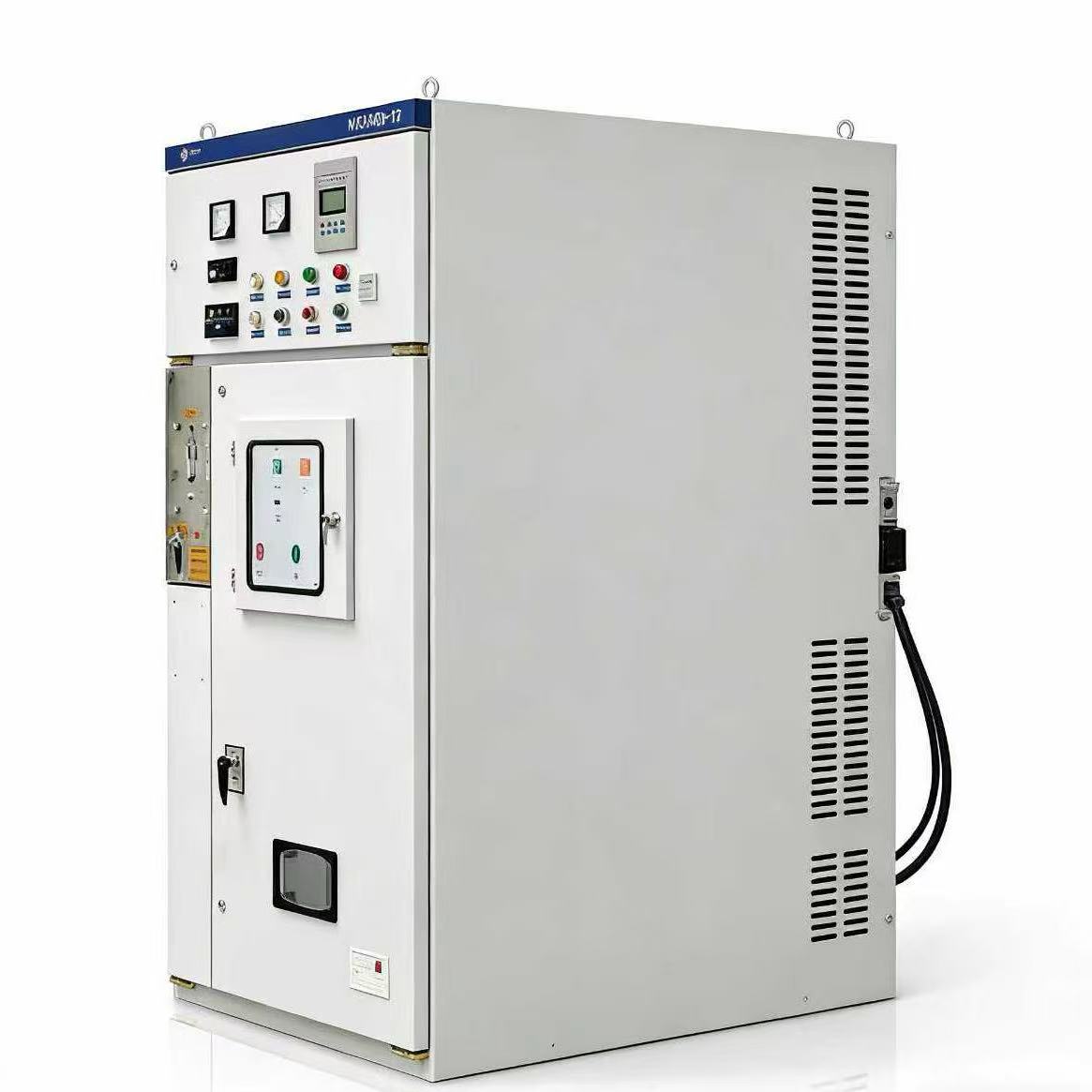

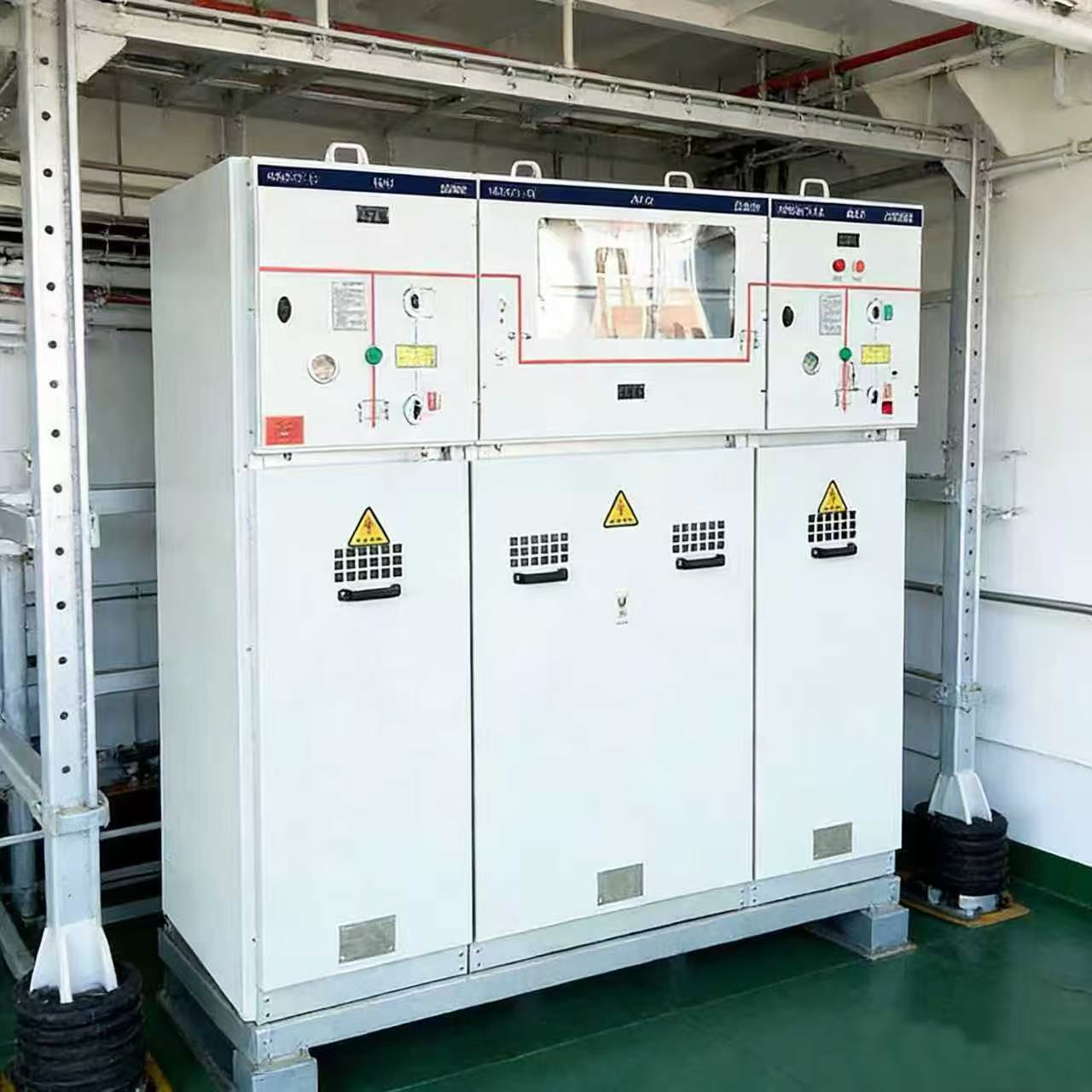

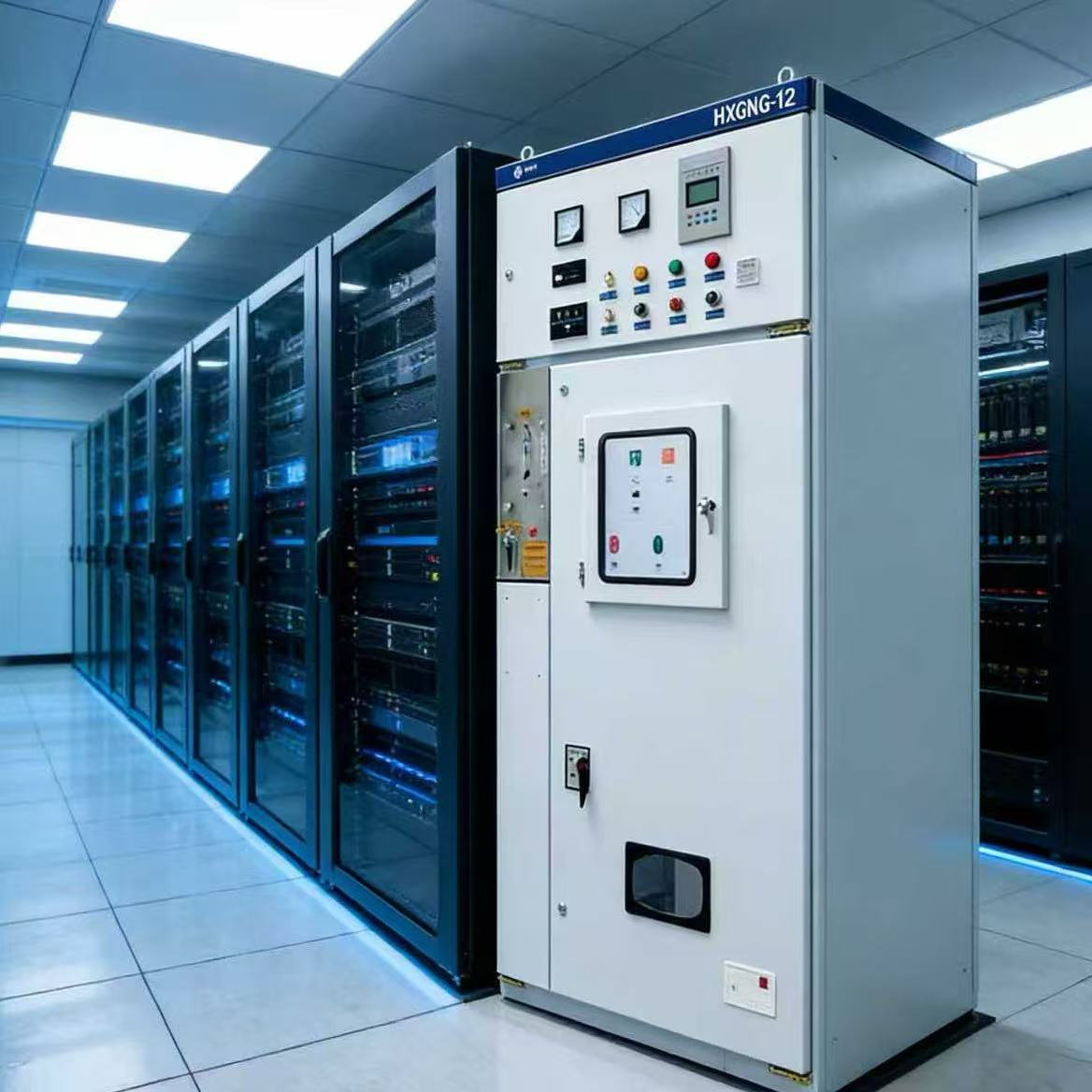

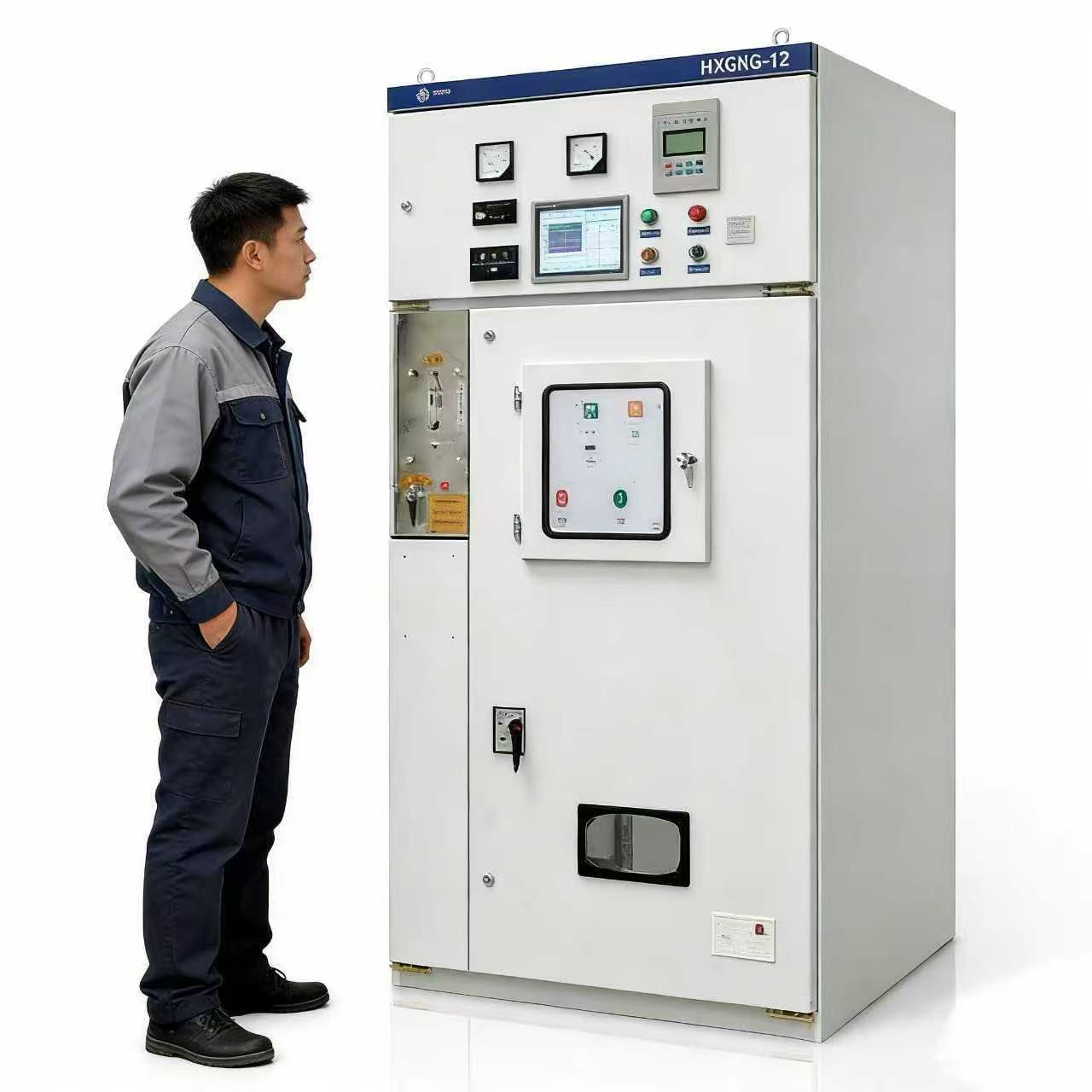

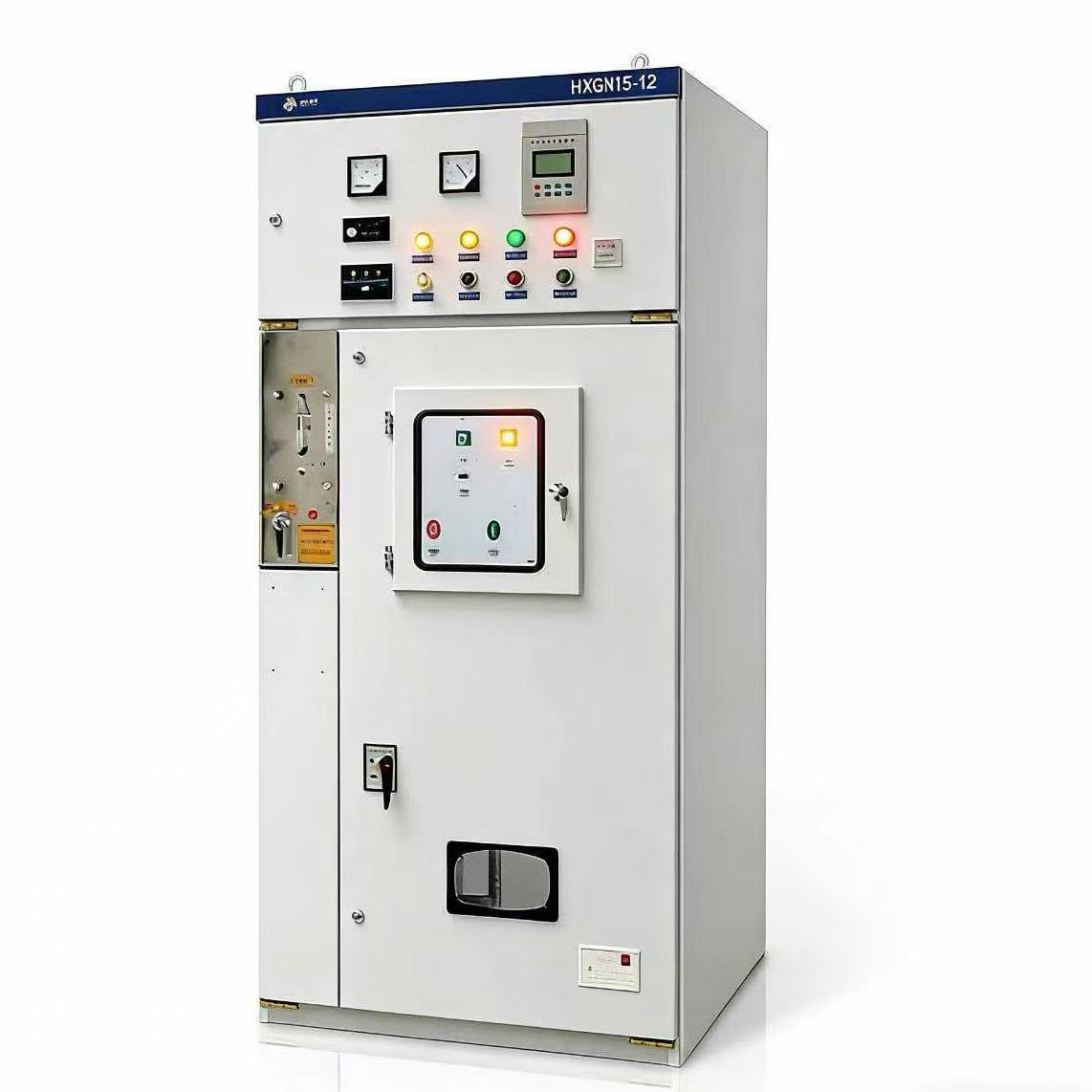

High Voltage Switchgear Cabinet – Technical Description

The High Voltage Switchgear Cabinet is a metal-enclosed power distribution and protection system designed for the safe control, protection, and isolation of high voltage electrical networks. It is widely applied in power utilities, substations, industrial plants, infrastructure projects, and commercial facilities to ensure reliable and continuous power supply.

The switchgear cabinet is suitable for rated voltages ranging from 3.3kV up to 40.5kV and rated currents up to 3150A, with short-circuit withstand capability up to 40kA. The system is available in air-insulated (AIS) and gas-insulated (GIS) configurations, utilizing vacuum circuit breakers (VCB) or SF₆ circuit breakers depending on application requirements.

The cabinet structure is manufactured from high-quality galvanized steel or aluminum-zinc coated sheets, processed with CNC machining and anti-corrosion surface treatment. Compartments are segregated into breaker, busbar, cable, and control sections to enhance operational safety and maintenance convenience. Withdrawable and fixed-type designs are available, equipped with mechanical and electrical interlocking systems to prevent maloperation.

Integrated primary components include circuit breakers, disconnectors, earthing switches, current transformers (CT), voltage transformers (VT), surge arresters, and protection relays. The switchgear supports advanced digital protection, metering, monitoring, and SCADA communication via IEC 61850 or conventional protocols.

All switchgear cabinets are designed and tested in accordance with IEC 62271 standards. Routine, type, and optional special tests such as power frequency withstand, lightning impulse, temperature rise, and internal arc tests can be provided. The product ensures high operational reliability, safety, and long service life under demanding environmental conditions.

Technical Parameters (Typical)

Rated Voltage: 3.3kV / 6.6kV / 11kV / 22kV / 33kV / 40.5kV
Rated Current: Up to 3150A
Short-Circuit Withstand: Up to 40kA, 1s / 3s
Insulation Medium: Air / SF₆ / Vacuum
Protection Degree: IP4X (cabinet), IP2X (compartments)
Standards: IEC 62271 series
Operation: Manual / Motorized / Remote control

Frequently Asked Questions (FAQ)

Q1: What voltage levels are supported by the high voltage switchgear cabinet?
A: The switchgear cabinet supports rated voltages from 3.3kV up to 40.5kV, including common levels such as 6.6kV, 11kV, 22kV, and 33kV, in accordance with IEC standards.

Q2: What types of circuit breakers can be used in the cabinet?
A: The cabinet can be equipped with Vacuum Circuit Breakers (VCB) or SF₆ Circuit Breakers, depending on system requirements, operating conditions, and customer preference.

Q3: Is the switchgear withdrawable or fixed type?
A: Both withdrawable (draw-out) and fixed-mounted configurations are available. Withdrawable designs allow easier maintenance and higher operational safety.

Q4: What safety features are included in the switchgear cabinet?
A: The cabinet includes mechanical and electrical interlocking, compartmentalized structure, earthing switches, pressure relief channels, and optional internal arc fault protection to prevent misoperation and enhance personnel safety.

Q5: What tests are performed before delivery?
A: All panels undergo routine factory tests such as insulation resistance, high-voltage withstand, functional checks, and interlocking verification. Type tests and special tests can be provided if required.
