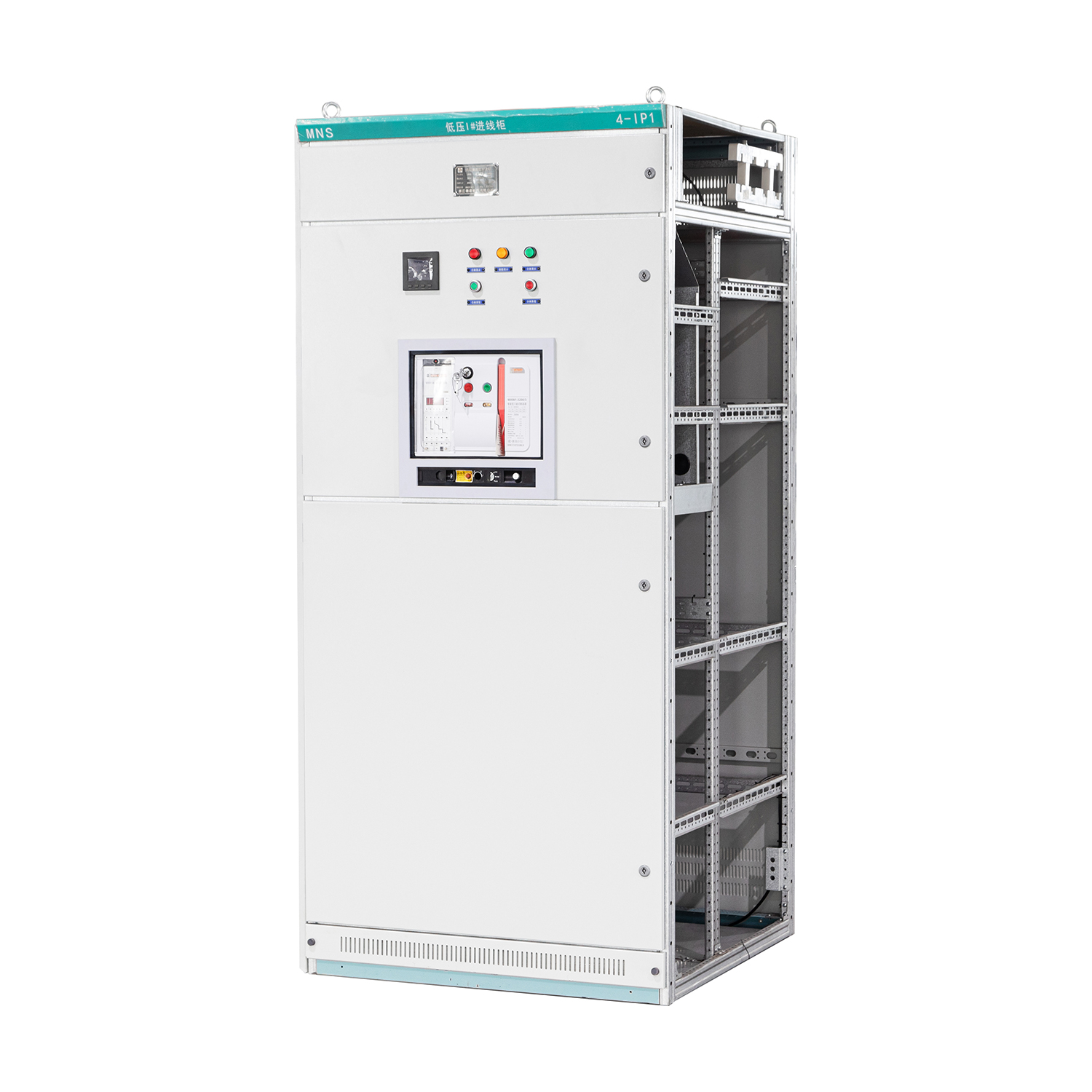

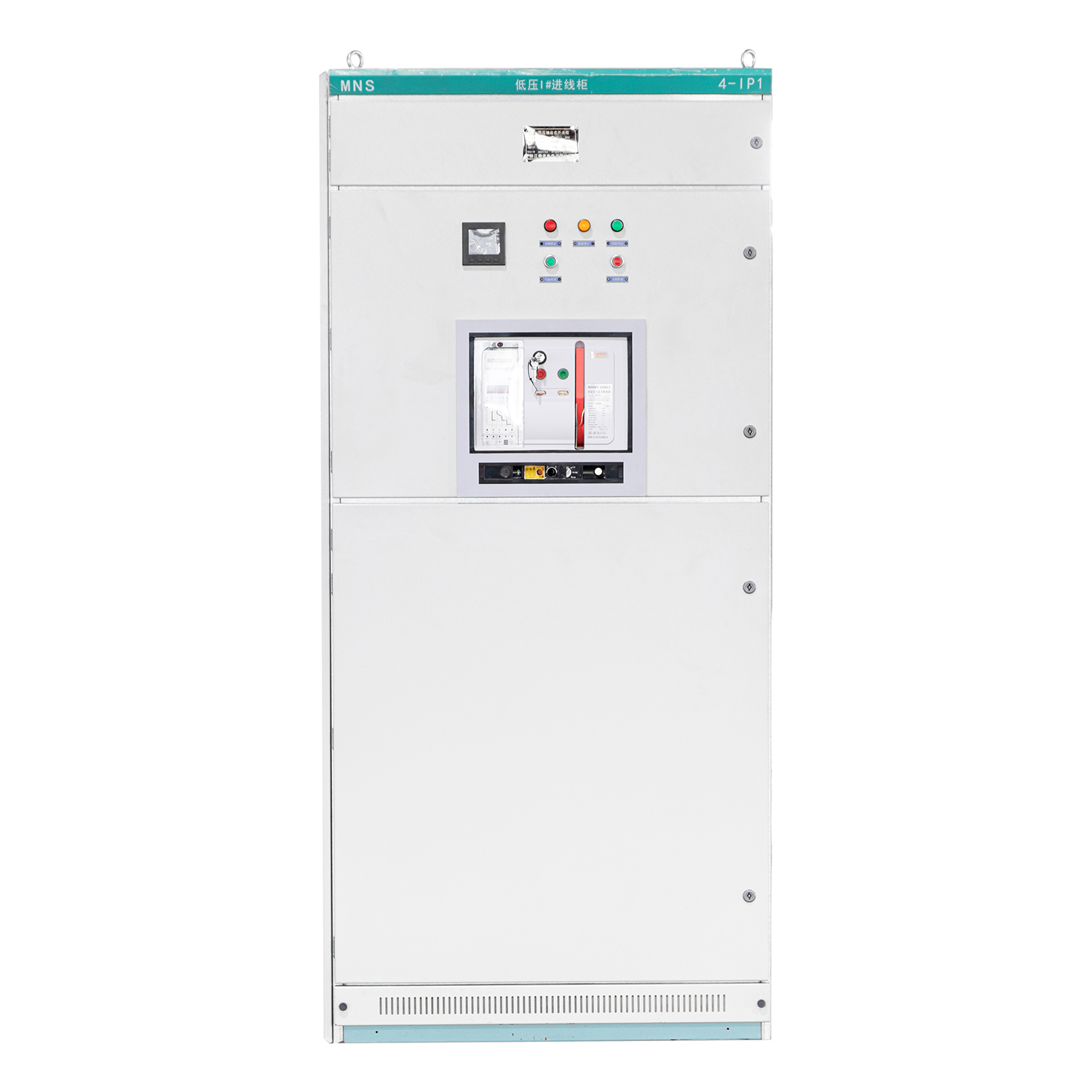

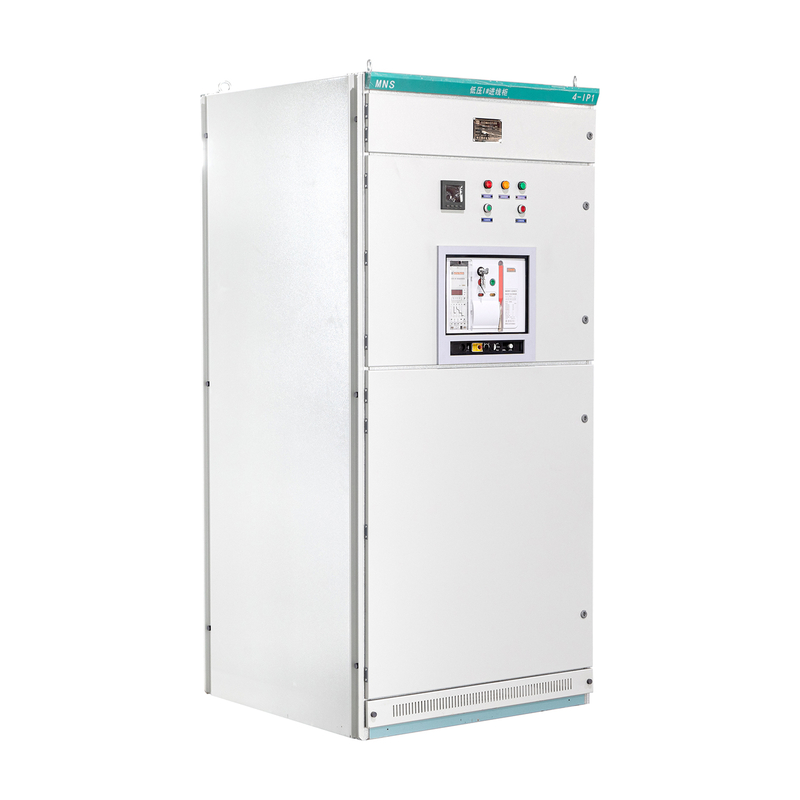

Fixed Type Low Voltage Switchgear (IEC 61439 Certified)
Subtitle: Compact, Cost-Effective Power Distribution for Global Applications
Key Features:
Space-Saving Design
Modular structure, depth ≤600mm, ideal for narrow electrical rooms.
Front access only, 20% less footprint than traditional models.
Enhanced Safety
Form 4b separation (IEC 61439), arc fault containment within 50ms.
IP54 protection (dust & water resistance), IK10 mechanical impact rating.
Global Compliance
Dual voltage: 400V/690V (50Hz & 60Hz compatible).
Certifications: CE, IEC 61439-1/2, UL 891, GOST-R.
Target Industries:
Commercial Buildings (Malls, Offices)
Industrial Plants & Manufacturing
Data Centers & Telecom Infrastructure
Renewable Energy Integration
Technical Specifications
| Parameter | Details |
| Rated Operational Voltage | 400V, 690V, 1000V (Customizable) |
| Rated Current | 630A~6300A (Air Circuit Breaker/MCCB Options) |
| Short-Circuit Withstand | 50kA/1s (IEC60947-2) |
| Busbar Rating | Copper/Aluminum, 1000A~5000A |
| Protection Degree | IP54(External), IP2X (Internal Compartments) |
| Operating Temperature | -25°C to +55°C (Optional -40°C Arctic Version) |
| Standards Compliance | IEC 61439, UL 891, EN 60439, AS/NZS 3439 |
Core Advantages
3.1 Robust Construction
- Triple-Coating Steel Frame: Anti-corrosion treatment for coastal/industrial environments.
- Compartmentalization: Independent units for feeders, meters, and busbars (Form 4b).
3.2 Easy Installation & Maintenance
- Pre-Drilled Cable Entries: Top/bottom entry options, compatible with global cable standards.
- Tool-Free Metering Compartment: Transparent cover for quick inspection.
3.3 Smart Integration
- Optional IoT Gateway: Monitor energy consumption, power quality via mobile app.
- Embedded Communication: RS485, Ethernet, or wireless LoRaWAN connectivity.
Global Adaptability
Regional Customization:
- Left/Right-Hand Operation:Adaptable to local electrical codes (NEC, IEC, etc.).
- Voltage Flexibility:220V, 380V, 415V, 440V variants.
- Language Support:Multi-language labeling (English, Spanish, Arabic, etc.).
Climate Resilience:
- Tropical Version: Built-in dehumidifiers, anti-fungal coatings.
- Desert Version:Sand filters, enhanced cooling vents.
Application Scenarios
Case 1: Shopping Mall in Saudi Arabia
- Solution: 120 panels for HVAC and lighting control.
- Result: Reduced energy loss by 12% through smart load balancing.
Case 2: Factory Automation in Germany
- Solution: IP65-rated version for high-humidity production lines.
- Result: Zero downtime in 5 years, meeting Industry 4.0 standards.
Why Choose Us?
30+ Global Partners: Supplied to Siemens, Eaton, and local integrators.
Cost Savings: 30% lower lifecycle cost vs. withdrawable models.
Rapid Customization: Modify busbar layouts within 3 working days.
Sustainability: 98% recyclable materials, RoHS & REACH compliant.
Service & Support
Free Configuration Software: Online tool for one-line diagram design.
Warranty: 3-year standard warranty (Extendable to 8 years).
Global Logistics: Door-to-door delivery with DDP/DAP terms.
