what is the difference between switchgear and switchboard​？

Difference Between Switchgear and Switchboard

Summary and Technical Explanation

Author: Electrical Engineering Team
Credentials:

• Power Distribution Engineers with 15+ years of industry experience

• Specialization in MV/LV Switchgear, Switchboards, and Prefabricated Substations

• Experience in IEC & IEEE compliant projects across industrial, utility, and commercial sectors

Executive Summary

Switchgear and switchboard are both essential components in electrical power distribution systems, but they serve different technical purposes.

• Switchgear is primarily used for control, protection, and isolation of electrical systems, mainly in medium- and high-voltage applications where safety and fault-handling capability are critical.

• Switchboard is used for low-voltage power distribution, focusing on delivering electricity safely and efficiently to downstream loads.

In most power systems, switchgear protects the system, while switchboards distribute power to end users.

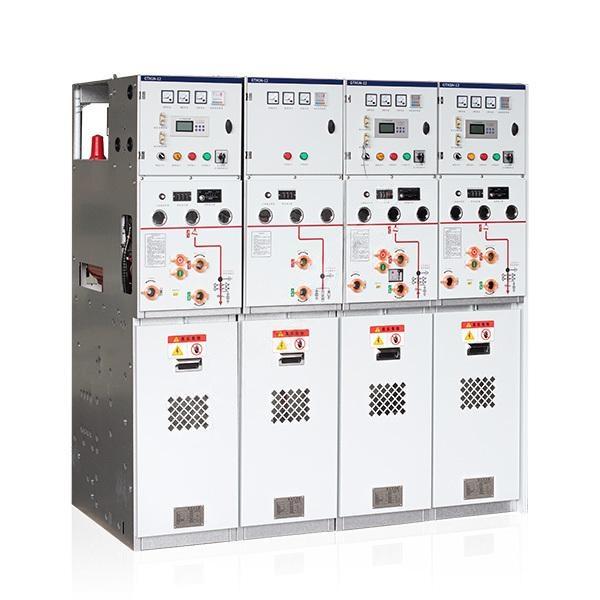

1. What Is Switchgear?

Switchgear is an assembly of electrical devices designed to switch, control, protect, and isolate electrical circuits. It plays a critical role in maintaining system stability and protecting both equipment and personnel during normal operation and fault conditions.

Key Functions

• Switching normal load currents

• Interrupting short-circuit and fault currents

• Isolating circuits for maintenance

• Ensuring operator and system safety

Common Types

• Medium Voltage Switchgear (6kV, 10kV, 11kV, 33kV, etc.)

• High Voltage Switchgear

• GIS (Gas Insulated Switchgear)

• AIS (Air Insulated Switchgear)

• RMU (Ring Main Unit)

Typical Applications

• Utility substations

• Industrial power systems

• Power generation plants

• Oil & gas and petrochemical facilities

2. What Is Switchboard?

A switchboard is a low-voltage electrical panel used mainly for power distribution and load control. It distributes electricity from a single source to multiple outgoing feeders.

Key Functions

• Distribution of electrical power

• Overload and short-circuit protection

• Control of connected loads

• Electrical metering and monitoring

Common Types

• Main Distribution Board (MDB)

• Sub Distribution Board (SDB)

• Final Distribution Board (FDB)

• Motor Control Center (MCC)

Typical Applications

• Commercial buildings

• Hospitals and data centers

• Residential and mixed-use developments

• Light industrial facilities

3. Key Differences Between Switchgear and Switchboard

4. Safety and Standards Perspective

Switchgear

• Designed to withstand and clear severe fault conditions

• Often includes arc-flash containment and internal arc classification

• Used where system failure can cause major outages or hazards

Switchboard

• Designed mainly to protect downstream circuits and loads

• Safety focuses on overload, short-circuit, and operational reliability

• Not intended for system-level fault isolation

5. Selection Guidelines

Use Switchgear When:

• Voltage level is 3.3kV or above

• High short-circuit currents are expected

• Maximum system reliability and personnel safety are required

• The project involves industrial or utility power networks

Use Switchboard When:

• The system operates at low voltage

• Power distribution to multiple loads is required

• Space and cost efficiency are priorities

• Applications are commercial or residential

6. Conclusion

While switchgear and switchboards are often mentioned together, they are fundamentally different in purpose:

• Switchgear ensures system-level safety, protection, and control

• Switchboard ensures efficient and reliable power distribution

In a complete electrical system, they work together—switchgear upstream and switchboards downstream—to form a safe and reliable power distribution network.
