Why is Oil Used in Transformers?

In electrical power systems, transformers are indispensable core equipment, found in urban substations, industrial plants, and remote power stations alike. If you observe these transformers closely, especially large power transformers, you'll notice they are typically immersed in a large oil tank. So, why does oil play such a critical role inside transformers? This is primarily due to the two core functions of transformer oil: Insulation and Cooling.

1. Primary Function 1: Superior Electrical Insulation

A transformer's internal structure is complex, containing components like high-voltage windings, low-voltage windings, and the core. Extremely high voltage differences exist between these parts and between them and the grounded tank. Air has limited insulating capability and can easily break down under high voltage, leading to arcing, short circuits, equipment damage, or even explosions.

• Insulating Medium: Transformer oil (typically highly refined mineral oil or synthetic ester oil) possesses a much higher dielectric strength than air. It effectively fills all the gaps between windings and the core, forming a reliable insulating barrier that prevents high-voltage discharge and ensures current flows safely along its intended paths.

• Material Protection: The oil also penetrates the fibers of the insulation paper and pressboard (used to wrap the windings), significantly enhancing the insulating properties of these solid materials, allowing them to withstand higher electric field strengths.

2. Primary Function 2: Efficient Heat Dissipation and Cooling

During operation, transformers generate significant heat (known as "load losses" and "no-load losses") due to winding resistance and eddy currents in the core. If this heat is not dissipated promptly, it causes the insulation materials to age rapidly, degrade in performance, and ultimately leads to overheating and burnout.

• Convective Circulation: Transformer oil has excellent thermal stability. When heated, it expands, becomes less dense, and naturally rises to the top of the tank or into cooling radiators. Upon cooling, it becomes denser and sinks back to the bottom. Through this natural convection cycle, the oil continuously carries heat away from the windings and core to the external walls of the tank.

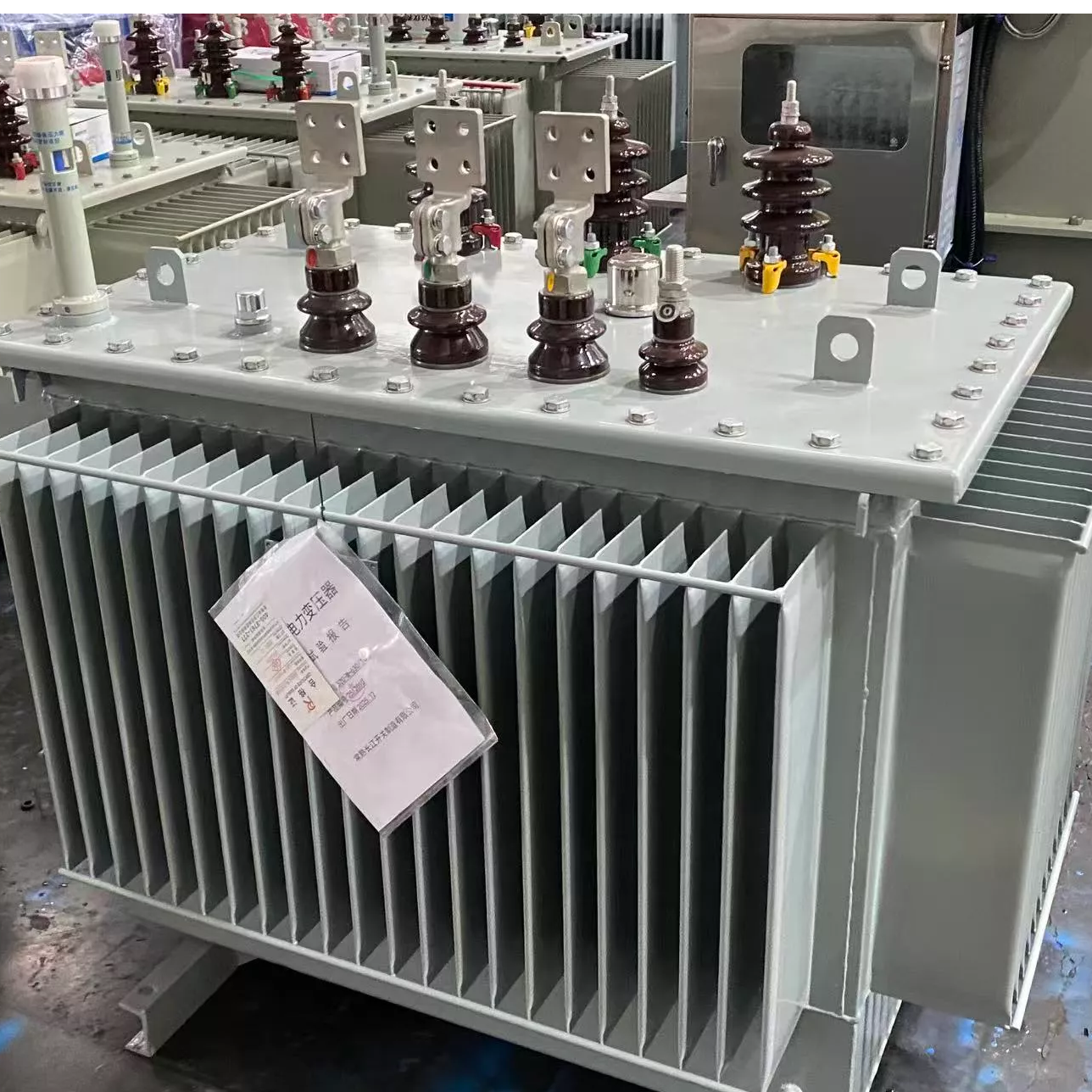

• Heat Dissipation: The tank walls are designed with cooling fins or connected to radiator banks. The heat in the oil is ultimately dissipated into the atmosphere through natural air convection over these surfaces or with the aid of cooling fans. For very large transformers, oil-to-water heat exchangers may also be used.

3. Other Important Roles

Beyond the two pillar functions of insulation and cooling, transformer oil provides additional benefits:

1. A "Window" for Diagnostics: During long-term operation and exposure to heat, the internal insulation materials slowly age. If latent faults like localized overheating or electrical discharges occur, they generate specific gases (such as hydrogen, methane, acetylene) that dissolve in the oil. By regularly taking oil samples for Dissolved Gas Analysis (DGA), internal abnormalities in the transformer can be detected early. This is a crucial predictive maintenance tool.

2. Arc Quenching: For transformers with on-load tap changers, the switching mechanism produces arcs during operation. The oil rapidly enters the arc path, cooling and extinguishing it, thereby protecting the switch contacts.

3. Corrosion Protection: By coating the internal metal components, the oil prevents direct contact with oxygen and moisture, thereby slowing down the oxidation and rusting of the core and windings.

Requirements for Transformer Oil Properties

Given its heavy responsibilities,合格的 (qualified) transformer oil must meet stringent standards:

• High Insulating Strength: To withstand high voltage.

• Good Thermal Stability and High Thermal Conductivity: Resists degradation under prolonged high temperatures and transfers heat efficiently.

• Low Viscosity: Ensures good fluidity for effective convective cooling.

• Low Pour Point: Allows operation in cold outdoor environments.

• High Flash and Fire Points: Ensures fire safety.

• Excellent Chemical Stability: Extends its own service life and minimizes degradation of solid insulation materials.

Maintenance and Challenges

Transformer oil faces challenges during long-term operation: It absorbs moisture from the air, which lowers its insulating strength. Contact with oxygen leads to oxidation, producing acids and sludge, which impair cooling and corrode equipment. Therefore, modern large transformers are usually equipped with breathers (containing moisture-absorbing silica gel) and nitrogen blanketing systems to seal them from air. Regular oil quality testing and reconditioning are also necessary.

Conclusion

In summary, transformer oil is far from a simple "filler." It is the "lifeblood" of the transformer, integrating the functions of insulation, cooling, diagnostics, and protection. It is this seemingly ordinary liquid that ensures the stable, safe, and efficient operation of transformers for decades, serving as the silent guardian underpinning the reliability of modern power networks. With advancing technology, new mediums like synthetic ester oils with better biodegradability are also developing, but the core principles of oil's role in transformers remain unchanged.
