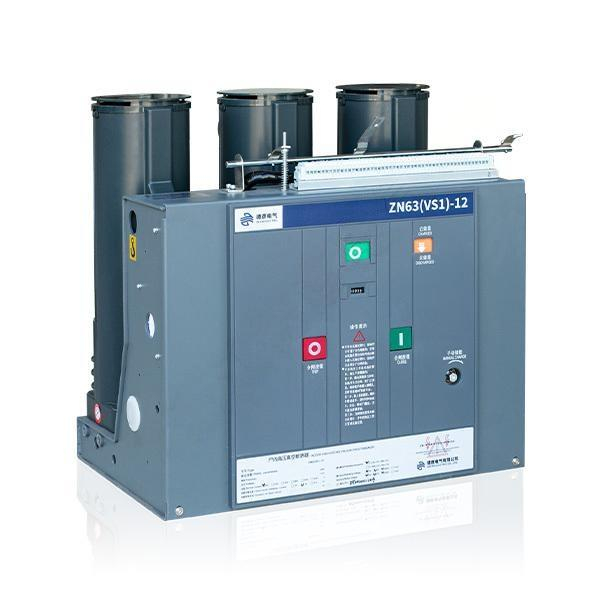

DY-CB-C03
None
A circuit breaker is a fundamental and indispensable safety component within any modern electrical distribution system. Its primary function is to automatically and reliably interrupt the flow of electric current when it detects a fault condition, such as an overload or a short circuit. By performing this critical protective operation, it safeguards downstream wiring, electrical appliances, and connected equipment from potential damage caused by excessive heat or destructive energy. More importantly, it is a first-line defense in preventing electrical fires, thereby ensuring the safety of property and personnel.
Operating on electromechanical or electronic principles, a circuit breaker serves a dual role: it acts as both a protective device and a functional manual switch for isolating a circuit. Unlike a fuse, which operates once and must be replaced, a circuit breaker can be reset after it trips, offering enhanced convenience and operational economy. It continuously monitors the current flowing through it. During an overload—a condition where the current exceeds a safe level for an extended period—a thermal mechanism within the breaker triggers disconnection. For a short circuit—an extremely high, instantaneous current surge caused by a fault—a fast-acting magnetic or electronic mechanism ensures rapid interruption to minimize damage.
Circuit breakers are categorized based on their application, breaking capacity, and trip characteristics. They are engineered to meet stringent international standards for safety and performance. Selecting the correct breaker is crucial for system reliability and is determined by key electrical parameters, which are detailed in the specification table below.
| Parameter | Description & Typical Examples |
|---|---|
| Rated Current (In) | The maximum continuous current the breaker can carry without tripping. Examples: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 63A. |
| Number of Poles | The number of live conductors (phases + neutral) the breaker can switch simultaneously. Examples: • 1P: Single Phase (Live only). • 2P: Single Phase (Live + Neutral). • 3P: Three Phase. • 4P: Three Phase + Neutral. |
| Rated Voltage (Ue) | The operational voltage for which the breaker is designed. Examples: 230V AC, 400V AC, 240V/415V AC. |
| Breaking Capacity (Icu/Ics) | The maximum fault current (in kA) the breaker can safely interrupt without being destroyed. This is a critical safety rating. • Icu (Ultimate): Maximum one-time interrupting capacity. • Ics (Service): Current it can interrupt multiple times. Examples: 6kA, 10kA, 16kA, 25kA, 36kA. |
| Tripping Characteristic (Curve) | Defines the response time to overcurrents, ensuring selective coordination. Common curves for Miniature Circuit Breakers (MCBs): • Type B: General purpose (Trips at 3-5 x In). Ideal for residential lighting/sockets. • Type C: Common commercial/industrial use (Trips at 5-10 x In). For inductive loads (motors, transformers). • Type D: High inrush currents (Trips at 10-20 x In). For heavy industrial equipment (X-ray machines, large motors). |
| Standards & Certifications | Compliance with regional/international safety standards. Examples: IEC/EN 60898-1 (MCBs), IEC/EN 60947-2 (MCCBs), UL 489, CSA. |
In summary, a circuit breaker is more than just a switch; it is a precisely engineered safety sentinel. Its correct selection, based on the detailed parameters above, ensures a robust, safe, and efficient electrical infrastructure. From protecting a single household circuit to securing complex industrial power networks, circuit breakers form the cornerstone of electrical protection strategy, offering reliable performance and peace of mind.
