Lowering Your Total Cost of Ownership with Energy-Efficient Dry-Type Transformers

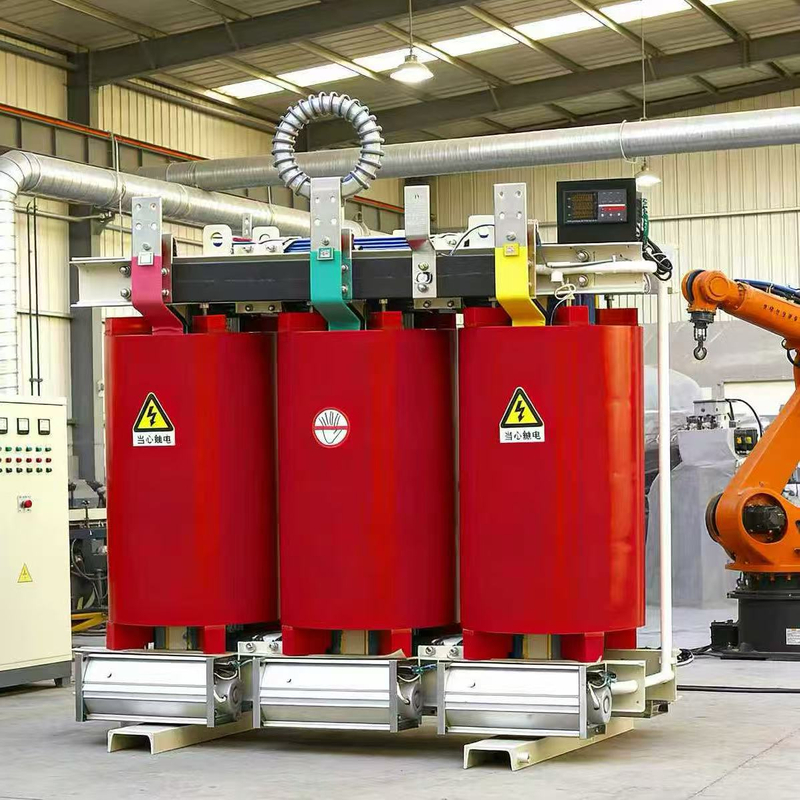

Dry-type transformers, utilizing solid insulation systems such as cast resin or vacuum pressure impregnated (VPI) materials, are increasingly favored in modern electrical installations. Their design fundamentally addresses two critical project constraints: budget and schedule. By eliminating flammable insulating liquids, they unlock a cascade of advantages that directly translate to reduced installed cost and streamlined logistics, making them the optimal choice for a wide range of applications from commercial buildings to industrial plants and renewable energy sites.

Core Advantages Driving Cost and Logistics Benefits

The absence of insulating oil is the key differentiator, leading to significant practical benefits:

1. Enhanced Safety & Reduced Civil Works: With no risk of fire, explosion, or fluid leakage, dry-type transformers can be installed directly in load centers—indoors, in basements, or on upper floors. This eliminates the need for expensive fire-rated vaults, containment dykes, oil collection pits, or complex ventilation systems, drastically cutting civil engineering costs and time.

2. Simplified Installation & Commissioning: Installation is remarkably straightforward. The unit is positioned, grounded, and connected. There is no oil handling, filtering, or testing, and no concerns about sealing leaks. This simplification can reduce on-site installation time by 30-50% compared to liquid-filled units.

3. Logistical Efficiency: Their robust, compact construction offers inherent logistical benefits:

• Lighter & More Compact: Easier to transport using standard freight, often avoiding costly oversize/overweight permits.

• Flexible Handling: Can be moved through standard corridors and elevators, simplifying placement in multi-story buildings or space-constrained sites.

• Minimal Handling Restrictions: No concerns over tilt angles or fluid spillage during transport and storage, reducing risk and special handling requirements.

Key Technical Parameters Underpinning Performance

The operational and economic benefits are grounded in specific, superior technical specifications:

• Insulation System & Thermal Class: Standard insulation is Class H (180°C) or Class F (155°C), using high-temperature materials like epoxy resin or Nomex, ensuring long life and high overload capability.

• Efficiency & Losses: Designed to meet or exceed NEMA TP-1, DOE 2016, or IEC 60076-20 efficiency standards. Typical no-load (core) and load (copper) losses are optimized for total cost of ownership, with high-efficiency models (e.g., EE, NEMA Premium) available for maximum energy savings.

• Temperature Rise: Standard ratings are 80°C, 115°C, or 150°C rise (by resistance). The use of high-temperature insulation allows safe operation at these higher rises, enabling a more compact design for a given kVA rating.

• Environmental & Protection Ratings:

• Enclosure: Typically NEMA 1 (indoor) or NEMA 3R (weatherproof for outdoor). Indoor units do not require vaults.

• Ingress Protection (IP): Commonly IP00 (open winding) to IP54 (dust and water splash protected) for enclosed units.

• Impedance & Sound Level: Standard impedance values (e.g., 3%, 4%, 5%, 6%) cater to different application needs for fault current limitation. Advanced designs and construction techniques yield lower sound levels (dB(A)), crucial for noise-sensitive environments like offices and hospitals.

• Standards & Compliance: Manufactured and tested per IEEE C57.12.01, IEC 60076-11, and UL 506, ensuring global safety and performance recognition.

• Cooling Class: Designated as AA (open-ventilated) or ANAN/ANAF (totally enclosed with or without fan cooling), offering flexibility for different environmental conditions.

Quantifying the Value Proposition

These technical parameters directly enable the promised project benefits:

• Lower Installation Costs: The compact footprint and lighter weight reduce foundation requirements. The high thermal class eliminates need for external cooling ducts. Standard indoor enclosures (NEMA 1) avoid costly specialized civil structures.

• Simplified Logistics & Faster ROI: Lower weight/size eases transport. Robust, solid construction minimizes damage risk. The quick, oil-free installation means the transformer is energized faster, accelerating project commissioning and time-to-revenue.
