Concise Product Overview

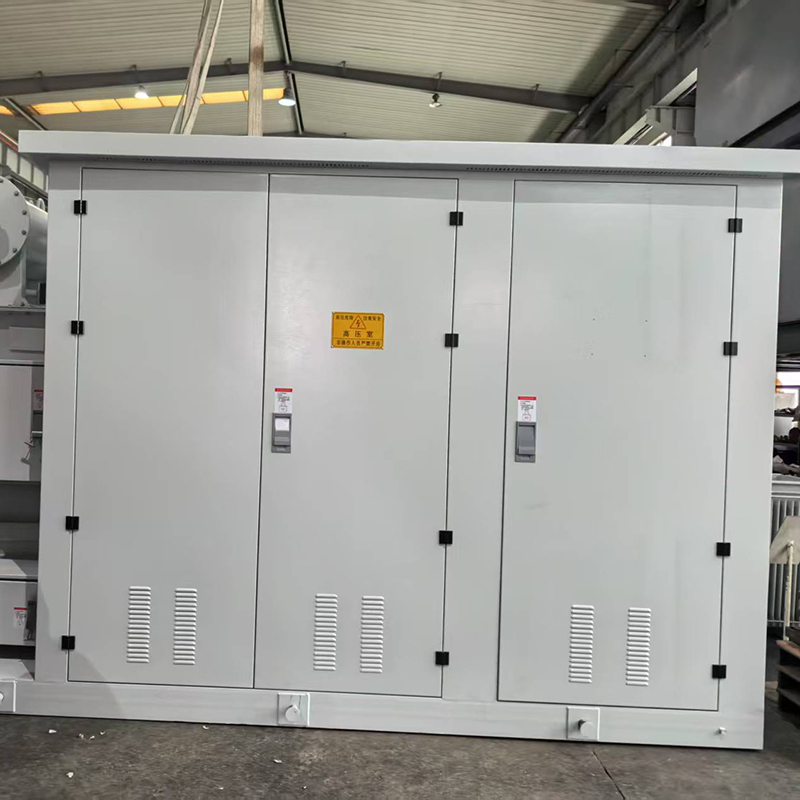

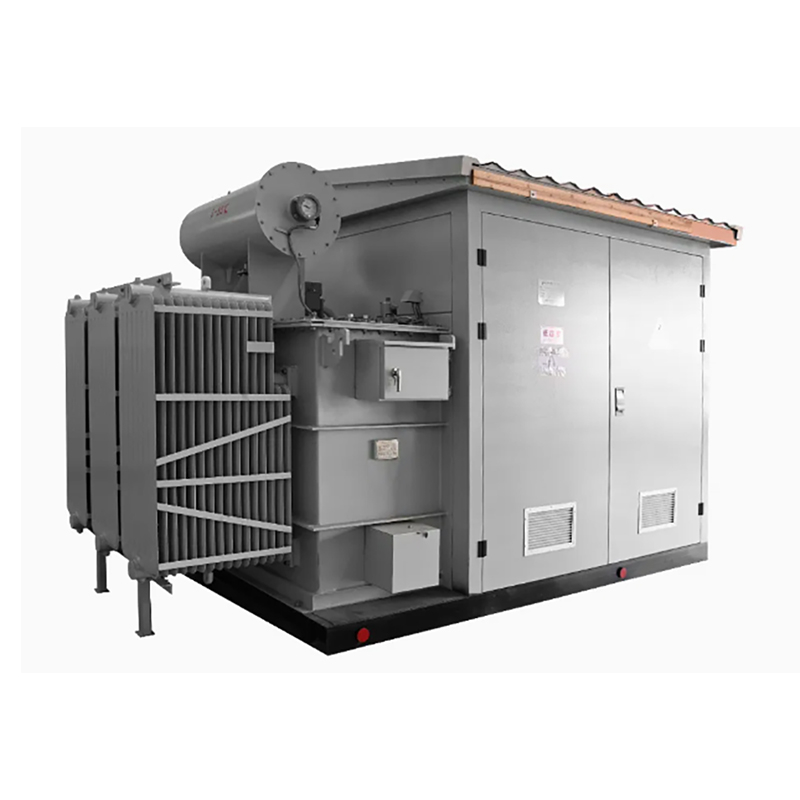

Hua-Style Compact Substation (Hua-Style Box Transformer)
Safe | Compact | Eco-Friendly
Key Highlights
Eco-Friendly Design: Zero SF6 gas, fully compliant with EU F-Gas Regulation & global sustainability goals.
High Reliability: IP67 protection, 30+ years lifespan, maintenance-free operation.
Smart Grid Ready: IoT-enabled monitoring (optional), compatible with SCADA/IEC 61850 systems.
Global Compliance: Meets IEC 62271, IEEE C37.60, and UL 347 standards.
Applications
Urban power networks
Industrial parks
Renewable energy plants
Critical infrastructure
Certifications
CE | IEC 62271 | KEMA | UL
Core Advantages
- Sustainable Innovation
▶ 100% SF6-free design eliminates greenhouse gas risks and disposal costs.
▶ 60% lower carbon footprint vs. conventional RMUs (verified by EPD certification).
- Military-Grade Protection
▶ Hermetically sealed stainless-steel enclosures withstand 100kA short-circuit currents.
▶ Triple interlocking mechanism (IEC 62271-200) prevents human error.
- Space-Saving Architecture
▶ 350mm width – 40% smaller footprint than SF6-based alternatives.
▶ Modular design supports flexible configurations (load break switches + fuses/breakers).
- Digital Intelligence
▶ Optional smart sensors for real-time monitoring (temperature, partial discharge, mechanical status).
▶ Seamless integration with energy management platforms via Modbus RTU, IEC 61850, or DNP3 protocols.
Technical Specifications
| Parameter | Specification |
| Rated Voltage | 12kV / 24kV / 40.5kV |
| Rated Current | 630A / 1250A / 2500A |
| Short-Time Withstand | 20kA / 25kA / 31.5kA (1s) |
| Protection Class | Enclosure: IP4X Gas Compartment: IP67 |
| Operating Temperature | -40°C to +70°C, ≤95% humidity |
| Mechanical Life | 10,000 operations (verified) |
Global Applications
Smart Cities: Underground distribution networks, high-rise building power hubs.
Heavy Industries: Oil & gas plants, steel mills, mining operations.
Renewables: Solar/wind farm grid connections, energy storage systems.
Mission-Critical Sites: Airports, data centers, hospitals requiring 24/7 reliability.
5Certifications & Compliance
International Standards: IEC 62271-200, IEEE C37.60, EN 62271-1
Safety Certificates: CE (EMC/LVD), UL 347, KEMA Type Test Report
Environmental Labels: SF6-Free Mark, Carbon Trust Certification
Why Choose Us?
Fast Global Delivery: Regional warehouses support 15-day urgent orders.
Custom Solutions: Voltage customization, RAL color options, protocol adaptation.
Lifetime Support: 5-year warranty + remote diagnostics via dedicated app.
