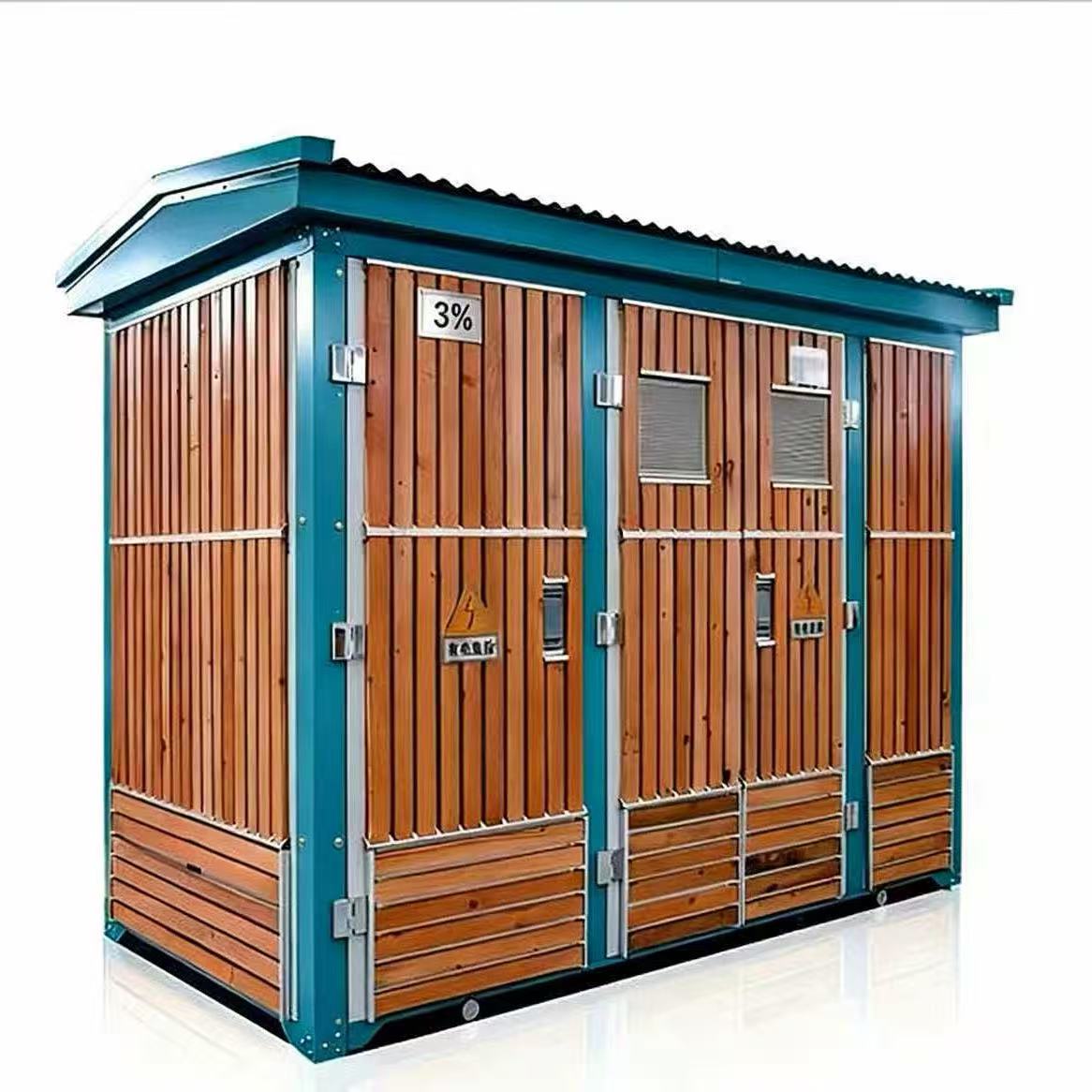

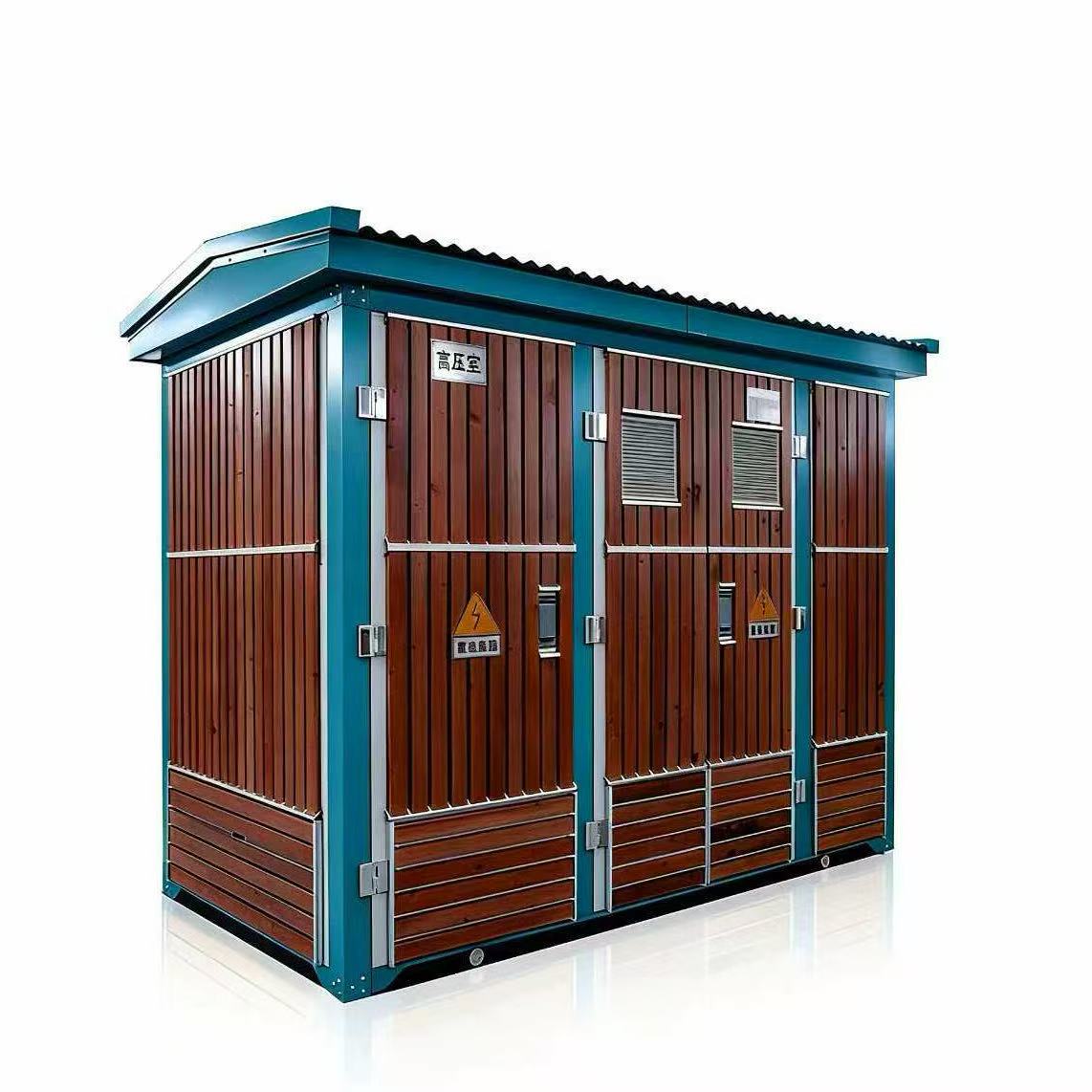

40.5kV Indoor Compact Substation for Food and Beverage Processing

For a hyper-scale data center campus, where speed of deployment, scalability, and relentless reliability are non-negotiable, the traditional approach of field-constructing electrical substations is a critical bottleneck. The prefabricated substation emerges as the strategic, turnkey solution, engineered specifically to meet the extreme demands of modern digital infrastructure. It integrates medium-voltage switchgear, dry-type transformers, low-voltage distribution, control, and cooling systems into a single, factory-built, and tested modular enclosure. This paradigm shift delivers unparalleled advantages in accelerating time-to-power, ensuring consistent quality, and enabling seamless, predictable expansion.

Core Value Proposition for Data Center Campus Deployment:

• Dramatically Accelerated Timeline: Site preparation and substation fabrication occur in parallel. On-site deployment is reduced from 12-18 months for traditional builds to a matter of weeks, enabling rapid commissioning of data halls.

• Predictable Scalability (Power Pod Model): The campus can be developed in phases using identical, replicated prefabricated substation "power pods." This modular approach allows for incremental capacity addition (e.g., 20 MVA modules) with perfect consistency, simplifying planning, sparing, and operations.

• Uncompromising, Factory-Controlled Quality: Every component is assembled and rigorously tested in a controlled environment, eliminating quality variances due to weather, on-site labor, or suboptimal field conditions. This results in superior reliability and performance.

• Optimized Footprint & Logistics: Designed for density and transportability, these units maximize power delivery per square meter and are built to be shipped via standard routes, simplifying logistics for often-remote campus locations.

Key Technical Parameters & Design Specifications:

A prefabricated substation for a hyper-scale campus is defined by the following critical technical parameters, which are guaranteed as a complete system:

1. Primary Electrical Characteristics:

• Primary Voltage: Typically 34.5kV, 27kV, or 15kV class, based on utility service.

• Transformer Rating & Type: 20-40 MVA per module, utilizing Cast Resin Dry-Type Transformers (critical for indoor safety, high F-class insulation, low fire risk, no oil containment needed).

• Transformer Impedance: 5-8% (typical), optimized for fault current coordination across a parallel-operating campus grid.

• Low-Voltage Output: 480VAC or 600VAC at 60Hz (or 400VAC at 50Hz), with busbar ratings exceeding 5000A.

• Short-Circuit Withstand: LV bus 100-200 kA IC for 3 seconds, ensuring robust fault protection.

2. Physical & Enclosure Specifications:

• Modular Construction: ISO-standard, weatherproof steel-framed modules (typically 12m x 3.5m x 3.5m per section) for road transport.

• Environmental Rating: IP54 minimum for outdoor siting; NEMA 3R equivalent. Designed for ambient temperatures from -25°C to +45°C.

• Sound Attenuation: Integrated acoustic treatment to achieve < 75 dB(A) at 1 meter, crucial for campus environments.

• Foundations: Minimalist, pre-designed concrete pad or slab mount, requiring only leveling and cable entry pits.

3. System Integration & Intelligence:

• Control & Monitoring: Integrated SCADA-ready intelligent control panel with IEC 61850 communication protocol. Features comprehensive monitoring of temperatures, load, transformer health, and switchgear status.

• Protection: Fully coordinated, microprocessor-based relays for overcurrent, differential, and transformer protection.

• Cooling: Redundant, N+1 configured, variable-speed HVAC or air-to-air heat exchange systems to maintain internal ambient temperature, ensuring optimal performance of dry-type transformers and switchgear.

• Interconnection: Pre-configured for parallel operation with other substation modules, including synchronized bus-tie schemes.
